TD-9422C1

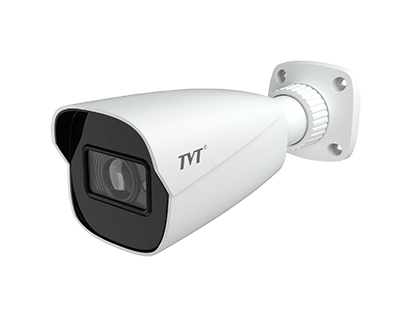

2MP Full-Color Bullet Network Camera
TD-9422C1(PE/WR2) Fixed Lens:2.8 mm,3.6 mm
Introduction
Specification
Accessories
Downloads
Features
2MP ( 1920 × 1080 ) H.265 full real time coding H.265
Max. resolution: 1920 × 1080
20~ 30m white light view distance
24/7 full color imaging
3D DNR, Digital WDR, HLC, BLC and Defog
ROI coding
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP67 ingress protection;
Support dual streams
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent Analytics: video blur detection, line crossing detection, intrusion detection
Dimension
| Model | TD-9422C1 |
| Camera | |
| Image Sensor | 1 / 2.8 "CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0 lux (LED ON) |
| S/N Ratio | ≥50dB |
| Lens | 2.8 mm @F1.0, H.FoV: 109°; V.FoV:76.4°; D.FoV:116.2° |
| 3.6 mm @F1.0, H.FoV: 84.8°; V.FoV:54.4°; D.FoV:92.7° | |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
| Image | |
| Video Compression | Main stream: H.265 / H.264; Sub stream: H.265 / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) |
| 50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) | |
| Sub Stream | 60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps) |
| Bit Rate | 128 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 |
| Video Output | NO |
| Audio | 1CH audio input |
| Storage | Built-in micro SD card slot, up to 128GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Intelligent Analytics | Video blur detection, intrusion detection and line crossing detection |
| Smart Alarm | Motion detection, SD card error, SD card full |
| General function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Yes (IEEE802.3af) |
| White Light Range | 20~ 30 m |
| Ingress Protection | IP 67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 4W |
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 217.8 × 80.5 × 80.3 |
| Weight ( net ) | Approx. 0.64KG |
| Installation | Ceiling mounting; wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
