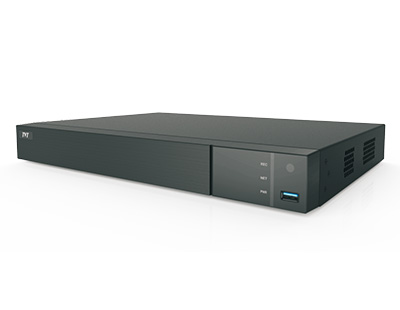

TD-3104B1H-4P/TD-3108B1H-8P
4/8 CH HD PoE NVR
TD-3100B1H-0P series supports 4/8 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P high definition IP video input, which adopts he most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. TD-3100B1H-0P series integrates with 4/8 PoE network ports and supports 4/8 CH IPC direct connection to NVR, simultaneous 4/8 CH playback and 4K ultra high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Introduction
Specification
Accessories
Downloads
Features
Support 4/8 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/DI/CIF IP video input
Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
Playback : 4 /8CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
Support POS information overlay on live view and playback
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
4/8 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS
Dimension
| Model | TD-3104B1H-4P | TD-3108B1H-8P | |
| System | OS | Embedded Linux | |
| Video | Network Input | 4 CH IPC input | 8CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ | ||
| 960H/D1/CIF | |||
| Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 | ||
| VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 | |||
| Compression | Standard H.265 / H.264 | ||
| Audio | Network Input | 4 CH IPC audio input | 8 CH IPC audio input |
| 2-way Audio | RCA × 1 | ||
| Local Output | RCA × 1 | ||
| Compression | G.711(U/A) | ||
| Record | Record Stream | Dual stream recording | |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ | ||
| 960H/D1/CIF | |||
| Frame Rate | NTSC:30fps; PAL:25fps | ||
| Playback | Simultaneous Playback | Max. 4 CH | Max. 8 CH |
| Search | Time slice / time / event / tag / smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View/ Playback | 1CH 8MP; | |
| 4CH 1080P | |||
| Alarm | Mode | Manual, sensor, motion, exception, smart events | |
| Input | Supports IPC alarm input | ||
| Output | Supports IPC alarm output | ||
| Triggering | Record, snap, preset, e-mail, etc. | ||
| Network | Interface | RJ 45 × 1 (10/100/1000Mbps) | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc. | ||
| Incoming/ Outgoing Bandwidth | 40/40 (Mbps) | 80/80 (Mbps) | |
| Client Connection | Max. 10 users access | ||
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA3.0 × 1, max 8T | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| Port | USB | USB 2.0 × 2 | |
| Remote Controller | Optional | ||
| PoE | PoE Ports | 100M RJ45 × 4 | 100M RJ45 × 8 |
| Standards | IEEE802.3af | ||
| Output Power | ≤40W | ≤ 96W | |
| Others | Power Supply | DC 48V/1.25A | DC 48V/2.5A |
| Consumption | ≤ 10W ( without HDD ) | ||
| Dimensions (mm) | 300 × 249 × 45( W × D × H ) | ||
| Working Environment | -10～50 °C, 10% ～ 90% humidity | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | ||
