TD-3104H1-B2-B/TD-3108H1-B2-B/TD-3116H1-B2-B
4/8/16 CH NVR
TD-3100H1-B2-B series supports 4/8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P high definition IP video input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
TD-3100H1-B2-B series supports 4/8/16 CH IP input, simultaneous 4/8/16 CH playback, and 4K ultra high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise,transportation and government, etc.
Introduction
Specification
Downloads
Features
Support 4/8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP input
H.265S/ H.265+/ H.265/ H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor/ POS/ AI recording
Playback : 4 /8/16CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, line crossing, video exception, etc.
Support POS information overlay on live view and playback
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log view and device status view
4K output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS

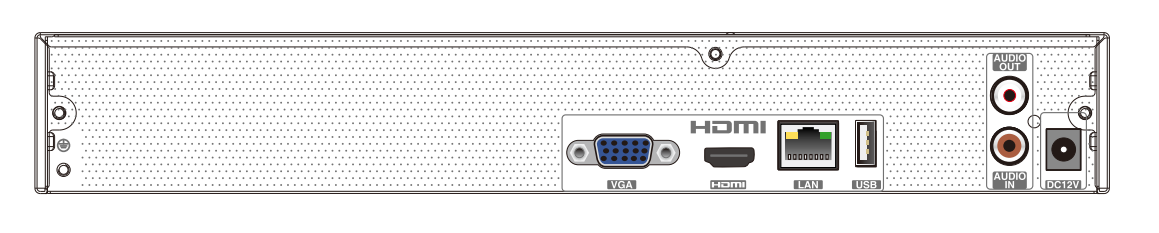

Dimension
| Model | TD-3104H1-B2-B | TD-3108H1-B2-B | TD-3116H1-B2-B | |
| System | OS | Embedded Linux | ||
| Video | Network Input | 4 CH IPC input | 8CH IPC input | 16CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |||
| Output | HDMITM × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 | |||
| Screen Display Mode | 1/4 | 1/4 /6/8/9 | 1/4 /6/8/9/13/16 | |
| Compression | H.265S / H.265+ / H.265 / H.264 | |||
| Audio | Network Input | 4 CH IPC audio input | 8 CH IPC audio input | 16 CH IPC audio input |
| Local Input | RCA × 1 (for two-way audio) | |||
| Local Output | RCA × 1 | |||
| Compression | G.711(U/A) | |||
| Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | ||
| Frame Rate | NTSC:30fps; PAL:25fps | |||
| Playback | Simultaneous Playback | Max. 4 CH | Max. 8 CH | Max. 16 CH |
| Search | Time slice / time / event / tag search | |||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |||
| Function | Play, pause, FF, FB, digital zoom, etc. | |||
| Decoding Capability | Live View/ Playback | Non-AI Mode:1×8MP@30fps/4×4MP@30fps/16×720P@30fps AI Mode: 1×8MP@30fps/4×3MP@30fps/9×720P@30fps/16×D1@30fps | ||
| Alarm | Mode | Manual, sensor, motion, exception, smart events | ||
| Input | Support IPC alarm input | |||
| Output | Support IPC alarm output | |||
| Triggering | Record, snap, preset, e-mail, etc. | |||
| Network | Interface | RJ 45 1000Mbps × 1 | ||
| Protocol | TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPS, 802.1x, RTSP, RTP, RTCP, FTP, WebSocket, SNMP, IGMP, ONVIF | |||
| Incoming/ Outgoing Bandwidth | 80/80 (Mbps) | 80/80 (Mbps) | 160/160 (Mbps) | |
| *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. | ||||
| Client Connection | Max. 64 users access | |||
| Face | Face Detection Performance (AI by IPC) | 4 CH | 8 CH | 16 CH |
| Face Detection Performance (AI by Device) | 2 CH (2MP) | |||
| Face Match Performance | No | |||
| Statistical Graph of Information | Bar graph | |||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |||
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 4 CH | 8 CH | 16 CH |
| Human/Vehicle Classification (AI by Device) | 2 CH(2MP) | |||
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) | Yes | ||
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP | ||
| Plate Recognition (AI by IPC) | Yes | |||
| Mobile Device | OS | iOS, Andriod | ||
| Storage | HDD Interface | SATA3.0 × 1, max 10T | ||
| Backup | Local Backup | U disk, USB mobile HDD | ||
| Network Backup | Yes | |||
| Port | USB | USB 2.0 × 2 | ||
| Remote Controller | Optional | |||
| Others | Power Supply | DC 12V/1.5A | ||
| Consumption | ≤ 10W ( without HDD ) | |||
| Dimensions (mm) | 300 × 249 × 45 ( W × D × H ) | |||
| Working Environment | -10 ～ 50°C, 10% ～ 90% humidity | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |||
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
