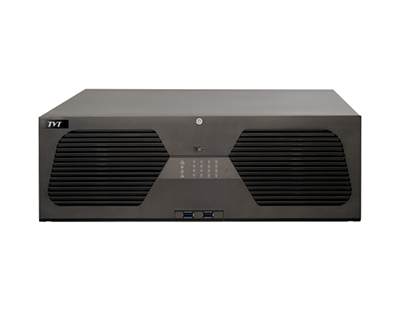

TD-3364H16-A3H/TD-33128H16-A3H
64/128 CH NVR
Support 64/128CH 16MP/12MP /8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P high definition IP video input
Introduction
Specification
Downloads
Features
H.265S/H.265+/H.265/H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
Playback: 16 CH simultaneous playback
Search: time slice, time, event, tag, smart and target database search
Support face detection and comparison
Support multiple VCA (Video Content Analytics) events, such as region intrusion, tripwire, etc.
Support OS information overlay on live view and playback
Support RAID 0, 1, 5, 6, 10
Express and flexible backup via USB, network and so on
Preview, record, playback, backup and remote access are supported
DHCP, DDNS, PPPoE network protocol, etc.
Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Multi-user online simultaneously
Authorization management, log view and device status view
8K output, true high resolution display
Support PTZ preset and auto cruise
Support NAT function and QR Code scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS

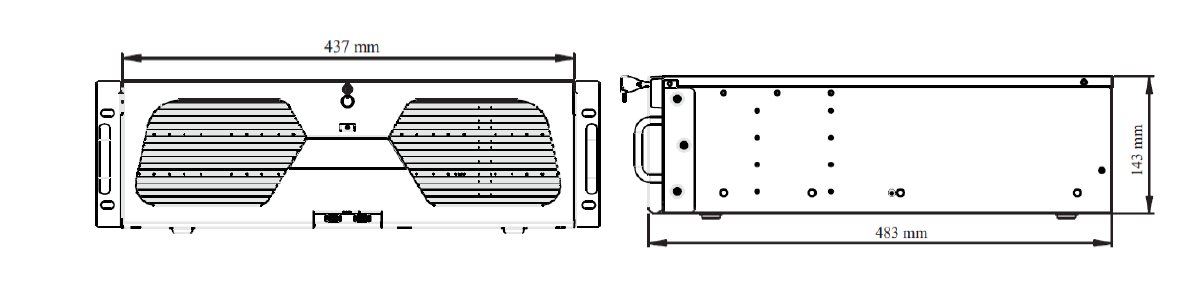

Dimension

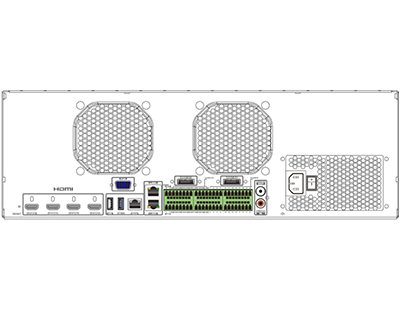

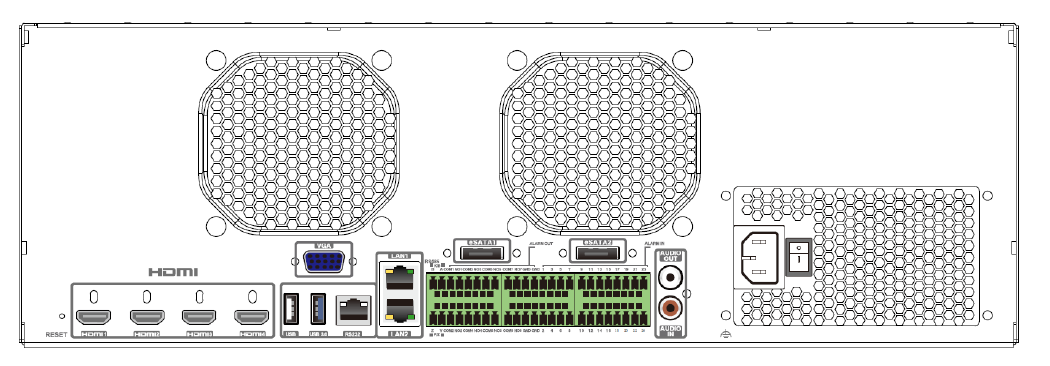

Rear Panel
| Model | TD-3364H16-A3H | TD-33128H16-A3H | |
| System | OS | Embedded Linux | |
| Video | IP Video Input | 64CH | 128CH |
| Network Bandwidth | 640Mbps/ 640Mbps(Incoming/Outgoing) | 768Mbps/768Mbps(Incoming/Outgoing) | |
| *When the AI function of the IPC is enabled, the actual incoming bandwidth (max.bitrate) is more than the set value in the NVR. | |||
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF | ||
| Output | HDMITM1: 7680×4320@60, 7680×4320@30, 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 (When the resolution of HDMITM1output is 8K, HDMITM2 is unavailable and the maximum resolution of HDMITM3 output is 1920×1080) HDMITM2: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 HDMITM3: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 HDMITM4: 1920×1080, 1280×1024, 1024×768 VGA×1: 1920×1080, 1280×1024, 1024×768 (VGA and HDMITM1 output the same video source) | ||
| Multi-screen Display | Main output:1/4/6/8/9/13/16/25/32/36/64 AUX output 1:1/4/6/8/9/13/16/25/32/36 AUX output2:1/4/6/8/9/13/16 AUX output 3:1/4/6/8/9/13/16 Max. 132(64+36+16+16) | ||
| Compression | H.264/H.265/H.265+/H.265S | ||
| Audio | Network input | 64CH | 128CH |
| Local Input | RCA×1 (for two-way talk) | ||
| Local Output | RCA×1 | ||
| HDMITM Audio Output | Support | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF | |
| Frame Rate | N: 30fps; P: 25fps (IPC high frame rate mode: N: 60fps; P: 50fps) | ||
| Cloud Storage | Number of Channels | Up to 16CH | |
| Record | Resolution: 1080P/720P | ||
| Frame Rate: 15fps | |||
| Playback | Simultaneous Playback | 16CH | |
| Search | Time slice/time/event/tag/smart search | ||
| Function | Play, pause, FF, Rewind, digital zoom, previous frame, next frame, etc. | ||
| Decoding Capability | Live View/Playback | Non-AI mode (default mode): 1×16MP@30fps/4×16MP@30fps /9×6MP@30fps /16×4MP@30fps /36×720P@30fps (AI by NVR, face comparison and PicSearch not supported; cloud storage supported) AI Mode:1×16MP@30fps/4×12MP@30fps/9×5MP@30fps/16×3MP@30fps/36×720P@30fps(AI by NVR, face comparison and PicSearch supported; cloud storage not supported) | |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. | |
| Input | 24CH | ||
| Output | 8CH | ||
| Triggering | Record, snapshot, preset, e-mail, etc. | ||
| Face | Face Detection Performance(AI by IPC) | 64CH | 128CH |
| Face Detection Performance(AI by NVR) | PicSearch disabled: 4CH (2MP) or 4CH(4MP) or 2CH (8MP) or 1CH(16MP) PicSearch enabled: 2CH (2MP) or 2CH(4MP) or 2CH (8MP) or 1CH(16MP) | ||
| Face Match Performance | PicSearch disabled:16CH PicSearch enabled: 8CH | ||
| Comparison Capability | 36 pictures/second | ||
| Face Picture Database | 32 libraries 10000 face pictures | ||
| Face Picture Search | Search by picture is supported | ||
| Database Management | Add, modify, delete and search face pictures | ||
| Face Picture Adding | Add face pictures through APP, WEB and external import | ||
| Face PicSearch | Supports successful face recognition alarm and stranger match alarm | ||
| Track | Track display on a map | ||
| Statistical Graph of Information | Bar graph | ||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | ||
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 64CH | 128CH |
| Human/Vehicle Classification (AI by NVR) | PicSearch disabled: 8CH(2MP) or 4CH(4MP) or 2CH (8MP) or 1CH(16MP) PicSearch enabled: 4CH(2MP) or 4CH(4MP) or 2CH (8MP) or 1CH(16MP) | ||
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) | Yes | |
| Other Functions | Fisheye | Supports fisheye dewarping via NVR/Web Client/mobile APP | |
| Plate Recognition (AI by IPC) | Yes (License plate database: up to 50,000 plate numbers) | ||
| Network | Protocol | TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP | |
| Interface | RJ45 10/100/1000Mbps ×2 | ||
| Client Connection | Max. 128 users access | ||
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA3.0 × 16, max 16TB per HDD | |
| RAID Type | RAID0, 1, 5, 6, 10 | ||
| E-SATA Interface | 2 | ||
| Port | USB | USB3.0× 1; USB2.0 ×3 (Front:2) | |
| RS485 | Yes (full-duplex), connect to PTZ or keyboard | ||
| RS232 | Yes | ||
| Reset | Yes | ||
| Remote Controller | No | ||
| Others | Power | ATX-275W | |
| Consumption | ≤50W (without HDD) | ||
| Dimensions | 437 × 483 × 143mm | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Directive EU RoHS, WEEE (2012/19/EU), and REACH(EC1907/2006) | ||
| Working Environment | -10~50℃; Humidity: 10%~90% | ||
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
