TD-9523E3B-A

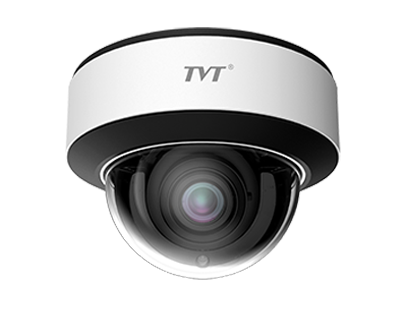

2MP IR Starlight Dome Network Camera
TD-9523E3B-A (D/AZ/PE/AR3) Motorized zoom lens : 2.8~12mm
Introduction
Specification
Accessories
Downloads
Features
2MP (1920 × 1080)
H.265+/ H.265/H.264/H.264/ MJPEG coding
ICR auto switch, true day / night vision
30 ~ 50m IR night view distance
Motorized zoom lens
Starlight
3D DNR, HWDR, HLC, BLC, Defog, Smart IR and ROI coding
Support corridor mode
Support electronic image stabilization
Support image distortion correction
Built-in micro SD card slot, up to 256GB
AC24V/DC12V/PoE power supply
IP67 & IK10
Support three streams
Support mobile surveillance by smart phones & tablet PCs with iOS and Android OS
Support SMD
Support NAT function
Intelligent analytics
Dual-system backup
Dimension
| Model | TD-9523E3B-A | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 "CMOS | |||
| Image Size | 1920 × 1080 | |||
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | |||
| Min. Illumination | 0.003 lux@F1.3, AGC ON; 0 lux with IR | |||
| Lens | 2.8~12mm@F1.3, H.FoV: 105°~30° ; V. FoV: 55°~16° ; D.FoV:123°~35° | |||
| Focus | Motorized | |||
| Lens Mount | Φ14 | |||
| Day& Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| S/N Ratio | ≥50dB | |||
| EIS | Yes | |||
| Angle Adjustment | Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 | |||
| Sub /third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | ||||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 1080P(1920×1080 ), 720P(1280×720 ), D1, VGA(640×480), 640×360,480×240, CIF | |||
| Main Stream | 1080P/720P(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Sub Stream | 1080P (60Hz:1 ~ 15fps; 50Hz: 1 ~ 12fps ) 720P/D1/VGA/640×360/480×240/CIF (60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Third Stream | D1/VGA/640×360/CIF/480×240 (60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. | |||
| adjustable through client software or web browser | ||||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 (10/100 Base-T) | |||
| Video Output | CVBS (BNC × 1) | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Intelligent Video Detection (IVD) | Line crossing, region intrusion/entrance/exiting (human/vehicle classification) | |||
| loitering detection, illegal parking detection, abandoned/ missing object detection | ||||
| Target Counting | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, | |||
| 4 motor vehicle features and 1 non-motor vehicle feature | ||||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 42m(138ft) | 17m(56ft) | 8m(26ft) | 4m(13ft) |
| 2.8~12mm(T) | 154m(505ft) | 62m(203ft) | 31m(102ft) | 15m(49ft) |
| Functions | ||||
| Remote Monitoring | Web Browser/NVMS/NVR/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | TCP, UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, | |||
| SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, NAT, QoS, ICMP, IGMP | ||||
| Interface Protocol | ONVIF | |||
| API & SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, disarming, ANR, cloud upgrade | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, | |||
| IP address filtering,802.1x authentication,basic and digest authentication for HTTP/RTSP/API | ||||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 30~50 m | |||
| Ingress Protection | IP67 & IK10 | |||
| Others | ||||
| Power Supply | AC24V/DC12V/PoE | |||
| Power Consumption | < 8.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Ø 141 × 100.2 | |||
| Weight ( net ) | Approx. 0.89KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU), and REACH(EC1907/2006) | |||
