TD-9544C2-PA

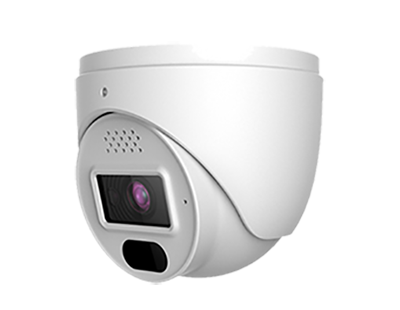

4MP Dual Illumination AI Turret Network Camera
TD-9544C2-PA(D/PE/AW2) Fixed lens ：2.8 mm ，3.6 mm
Introduction
Specification
Accessories
Downloads
Features
H.265+/H265/H.264+/H264/ MJPEG coding
Max. resolution: 2688 × 1520
20 ~ 30m IR or white light range
3D DNR, true WDR, HLC, BLC, Defog and ROI coding
1CH audio input; 1CH built-in speaker; 1CH built-in MIC
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP66 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics
Blue and red light warning (flashing alternately)
Support user-defined warning voice import
Support smart supplement light

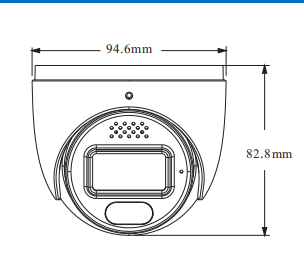

Dimension
| Model | TD-9544C2-PA | |||
| Camera | ||||
| Image Sensor | 1 / 3" CMOS | |||
| Image Size | 2688 × 1520 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.03lux@F1.6,AGC ON; 0 lux with LED | |||
| Lens | 2.8 mm@F1.6, H.FoV:96°; V.FoV:54.5°; D.FoV:113°; 3.6 mm@F1.6, H.FoV: 79.5°; V.FoV:42°; D.FoV:95° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 2D/3D DNR | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP(2688×1520)/(2592×1520), 2K (2560×1440 ), 3MP (2304×1296),1080P (1920×1080),720P(1280×720), D1, VGA(640×480),640×360,CIF, 480×240 | |||
| Main Stream | 4MP/2K/3MP/1080P/720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Sub Stream | 720P/D1/VGA/640 360/CIF/480 240 ( 60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in speaker; 1CH built-in MIC | |||
| Alarm | No | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web Client/NVR/NVMS2.0/Mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, cable disconnection, light alarm, audio alarm | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, smart supplement light, disarming | |||
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP | |||
| PoE | Yes , IEEE802.3af | |||
| Supplement light Range | IR range: 20 ~ 30 m White light range: 20 ~ 30 m | |||
| Protection Grade | IP66 | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification) loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 59.66m(195.73ft) | 23.86m(78.28ft) | 11.93m(39.14ft) | 5.96m(19.55ft) |
| 3.6mm | 79.19m(259.80ft) | 31.67m(103.90ft) | 15.83m(51.93ft) | 7.91m(25.95ft) |
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 9.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 94.6 × 82.8 | |||
| Weight ( net ) | Approx. 0.47KG | |||
| Installation | Ceiling mounting; wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
