TD-95A8E3B

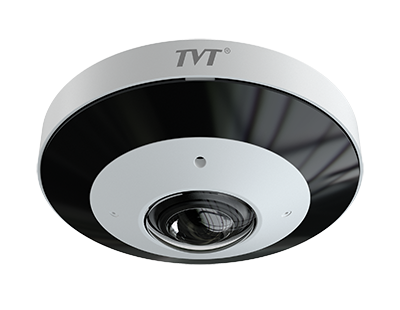

12MP IR Water-proof Fisheye Network Camera
TD-95A8E3B(D/PE/AR1) Fixed Lens ：1.65mm
Introduction
Specification

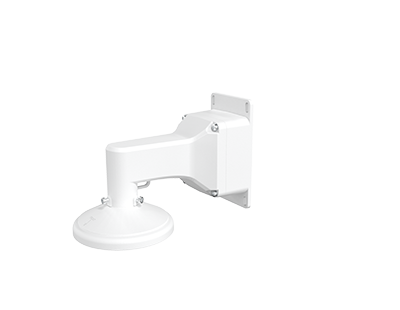

Accessories
Downloads
Features
1:1 (3000×3000) @30fps
H.265+ / H.265/ H.264+ / H.264 MJPEG coding
ICR auto switch, true day & night
10~20m IR view distance
Support 3D DNR, digital WDR, BLC, HLC, Smart IR, Defog, etc.
Support ROI
Built-in micro SD card slot, up to 256GB
IP 67 ingress protection
Intelligent Analytics
Support P2P function
Support mobile surveillance by smart phones with iOS and Android OS

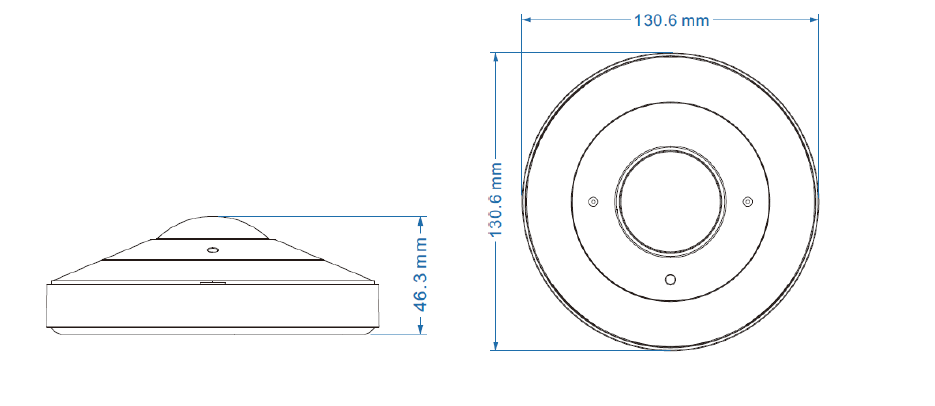

Dimension
| Model | TD-95A8E3B |
| Camera | |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Max. Resolution | 4000×3000 |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Min. Illumination | 0.01 lux@F2.0, AGC ON; 0 lux with IR |
| IRIS | Fixed IRIS |
| Lens | 1.65mm @F2.0, horizontal field of view : 180° (wall mounting)，360° (ceiling mounting)，360° (desktop) |
| WDR | Digital WDR |
| S/N Ratio | ≥ 50dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D NR |
| Image | |
| Video Compression | Main stream: H.265+ / H.265/ H.264+ / H.264 Sub stream: H.265+ / H.265/ H.264+ / H.264 MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Main Stream | Mode1: Fisheye Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~25fps; 60Hz: 1~30fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~25fps; 60Hz: 1~30fps) Fisheye view (third stream): 960×960/ 640×640/360×360(50Hz: 1~25fps; 60Hz: 1~30fps) Mode2: Panoramic Panoramic view (main stream): 4000×3000/3840×2160/3200×1800/2560×1440 (50Hz:1~20fps; 60Hz:1~20fps) Panoramic view (sub stream): 1920×1080/ 960×540/640×480 (50Hz:1~20fps; 60Hz:1~20fps) Panoramic view (third stream): 1280×720/640×360 (50Hz:1~20fps; 60Hz:1~20fps) Mode 3: Fisheye+Panoramic+3 PTZ Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~15fps; 60Hz:1~15fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~15fps; 60Hz:1~15fps) Fisheye view (third stream): 960×960/ 640×640/360×360 (50Hz: 1~15fps; 60Hz:1~15fps) Panoramic view (main stream): 4000×3000/3840×2160/3200×1800/2560×1440 (50Hz:1~15fps; 60Hz: 1~15fps) Panoramic view (sub stream): 1920×1080/ 960×540/640×480 (50Hz:1~15fps; 60Hz: 1~15fps) Panoramic view (third stream): 1280×720/640×360(50Hz:1~15fps; 60Hz: 1~15fps) 3PTZ view: (1280×720/960×540/640×360) * 3 (50Hz:1~15fps; 60Hz: 1~15fps) Mode 4：Fisheye+ 4 PTZ Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (third stream): 960×960/ 640×640/360×360 (50Hz: 1~25fps; 60Hz:1~30fps) 4PTZ view : (1280×720/960×540/640×360) * 4 (50Hz:1~15fps; 60Hz: 1~15fps) Mode5：Fisheye+ 4 PTZ Fusion Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (third stream): 960×960/ 640×640/360×360 (50Hz: 1~25fps; 60Hz:1~30fps) 4PTZ fusion view (main stream): 2560×1440 (50Hz:1~20fps; 60Hz: 1~20fps) 4PTZ fusion view (sub stream): 640×360 (50Hz:1~20fps; 60Hz: 1~20fps) 4PTZ fusion view (third stream): 640×360 (50Hz:1~20fps; 60Hz: 1~20fps) |
| Bit Rate | 64Kbps ~ 16Mbps |
| Bit Rate Type | VBR/CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | 1 CH RJ45 10 M/100 M self-adaptive Ethernet port |
| Video Output | CVBS (BNC × 1) |
| Audio | 2CH Built-in MIC, 1 CH audio input, 1CH audio output |
| RS-485 | Yes, half-duplex |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| Alarm | 1CH alarm input, 1CH alarm output |
| Functions | |
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, SNMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPS, HTTP, QoS, P2P, HTTP POST |
| Interface Protocol | ONVIF Profile S/G/M/T |
| Intelligent Analytics | Mode 1/3/4/5 (ceiling mounting): (Human) region intrusion/region entrance/region exiting/line crossing/target counting by line, heat map Mode 2/3 (Wall mounting or desktop): Region intrusion/region entrance/region exiting/line crossing/target counting by line (human/motor vehicle/non-motor vehicle classification) |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm, audio exception |
| General function | Watermark, video mask, heartbeat, corridor pattern, fisheye dewarping, system backup, disarming, cloud upgrade, ANR |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API services |
| PoE | Yes, IEEE802.3af |
| IR Distance | 10-20m |
| Ingress Protection | IP67 |
| General | |
| Power Supply | DC12V/PoE |
| Power Consumption | <10.5W |
| Working Environment | -30℃ to 60 ℃ (-22°F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Environment | -30℃ to 65 ℃ (-22°F to 149 °F). Humidity 95% or less (non-condensing) |
| Dimensions(mm) | φ130.6×46.3 |
| Weight (net) | Approx. 516.2g |
| Installation | Wall mounting, ceiling mounting, desktop |
| Certificate | CE, FCC, UKCA |
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
