• TD-YZJ0312

TD-YZJ0312

Pole Mounting Bracket


  • TD-YZJ0312

Introduction

Specification

Accessories

Downloads

Features

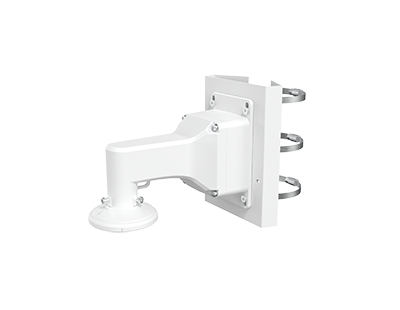

Vertical pole mounting bracket with the junction box

Aluminum alloy and steel with surface spray treatment

Bottom outlet, and back outlet

The hook for safety rope facilitates speed dome’s installation

Dimension

Model

TD-YZJ0312

Material

Aluminum alloy and steel

Color

White

Min. Packaging Quantity

1

Packing Size

450x300x478mm

Dimension

256x300x171mm

Net Weight

5.1kg

Load Bearing

The wall must be strong enough to withstand at least 3 times the weight of the speed dome and the bracket.

Working Temperature

-40°C~+60°C(-40°F~+140°F)

Working Humidity

10% ~ 90%
