TD-9545C3H

4MP Full-Color Turret Network Camera


TD-9545C3H(PE/WR2)    Fixed lens :2.8 mm ,3.6 mm


  • TD-9545C3H

Introduction

Specification

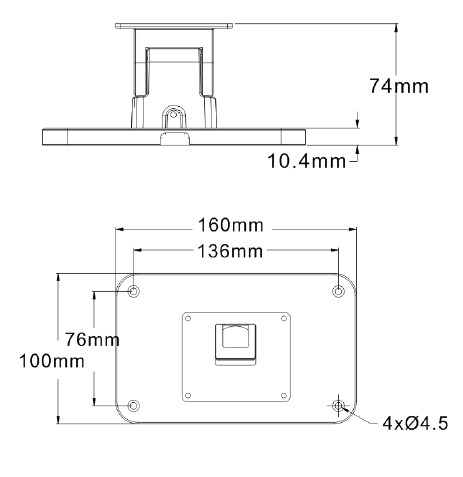

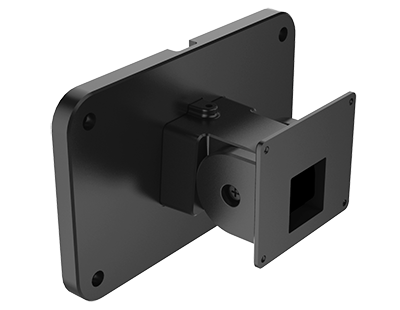

Accessories

Downloads

Features

H.265+ / H.265 / H.264 +/H.264 / MJPEG coding

Max. resolution: 2688 × 1520

20~ 30m white light view distance

24/7 full color imaging

3D DNR, WDR, HLC, BLC, and ROI coding

Support electronic image stabilization

Support image distortion correction

Support 1CH audio input; 1CH audio output; 1 CH built-in MIC

Built-in micro SD card slot; up to 1TB

DC12V/PoE power supply

IP 67 ingress protection

Support five streams

Support remote monitoring by smart phones & tablet PCs with iOS and Android OS

Intelligent analytics

Dimension

ModelTD-9545C3H
Camera
Image Sensor1 / 1.79 "CMOS
Image Size2688 × 1520
Electronic ShutterAuto or manual mode; manual mode: 1 / 2s ~ 1 / 100000 s
Iris TypeFixed Iris
Min. Illumination0.0003 lux @F1.0, AGC ON; 0 lux with illumination on
S/N Ratio50dB
Lens2.8 mm@F1.0, H.FoV: 112°; V.FoV:61°; D.FoV:133°
3.6 mm@F1.0, H.FoV: 96°; V.FoV: 52°; D.FoV:115°
FocusFixed
Lens MountM12
Wide Dynamic RangeDigital WDR
BLCYes
HLCYes
DefogYes
Digital NR3D DNR
Angle AdjustmentPan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video CompressionMain stream: H.265+/ H.265 / H.264+ / H.264
Sub stream/Third stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG
Fourth stream/Fifth stream: H.265 / H.264 / MJPEG
H.264 Compression StandardBaseline Profile/Main Profile/High Profile
Resolution4MP (2688×1520),2K (2560×1440), 3MP(2304×1296 ),1080P (1920×1080),
720P (1280×720 ), D1, VGA (640 ×480), CIF, 480×240
Main Stream4MP/2K/3MP/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Sub Stream1080P/720P/D1 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream720P/D1/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Fourth StreamD1/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Fifth StreamD1/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate64 Kbps ~ 8 Mbps
Bit Rate TypeVBR / CBR
Audio CompressionG711A / U
Image SettingsROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc.
adjustable through client software or web browser
ROIEach ROI to be configured separately
Interfaces
NetworkRJ 45
Video OutputNo
Audio1CH audio input; 1CH audio output; 1CH built-in microphone
StorageBuilt-in micro SD card slot; up to 1 TB
ResetYes
Alarm1CH alarm input; 1CH alarm output
Intelligent Analytics
Smart EventLine crossing, region intrusion/entrance/exiting (human/vehicle classification), abandoned/ missing object detection, crowd density detection
StatisticsTarget counting by line, heat map
Exception DetectionScene change, video blur and abnormal color detection
Face DetectionFace detection and face capture
Video MetadataSimultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm52m(170ft)21m(68ft)10m(33ft)5m(17ft)
3.6mm62m(203ft)25m(82ft)12m(40ft)6m(20ft)
Functions
Remote MonitoringWeb Client/TVT NVR/NVMS/mobile APP
Web BrowserIE11(plug-in required)/Chrome 92.0+/Edge 92.0+/Firefox 91.0+/Safari 13.1+
Online ConnectionSupport simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
Interface ProtocolONVIF
StorageNetwork remote storage; micro SD card storage
Smart AlarmMotion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection
General FunctionWatermark, video mask, heartbeat, image distortion correction, corridor pattern
SecurityVideo encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP
PoEYes , IEEE802.3af
White Light Range20 ~30 m
Ingress ProtectionIP 67
Others
Power SupplyDC12V/PoE
Power Consumption< 5.5W
Storage Conditions- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )Φ 111.6 × 99.6
Weight ( net )Approx. 0.623KG
InstallationCeiling mounting; Wall mounting
CertificateCE, FCC
Environmental ProtectionDirective EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
