• TD-9846SP1

TD-9846SP1

4MP Solar-powered 4G Full-Color Network Camera


TD-9846SP1(BA/G4/WR2)    Fixed  Lens :  2.8mm , 3.6 mm


  • TD-9846SP1

Introduction

Specification

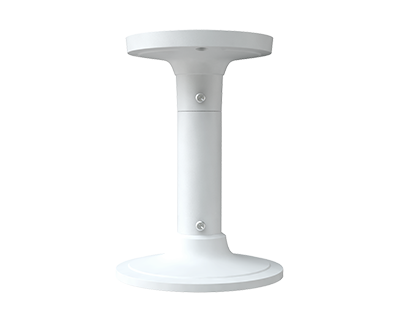

Accessories

Downloads

Features

High quality imaging with 4MP resolution

24/7 Colorful imaging

Stand-alone with solar panel and Li-battery

Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and PIR wakeup

LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission;

Support Micro SIM card

Built-in micro SD card slot, up to 256GB;

Built-in 64G eMMC storage

Support three streams

Intelligent Analytics

Stability against category 12 typhoon

Camera: Water and dust resistant (IP67)

Dimension

ModelTD-9846SP1(BA/G4/WR2)
Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination0.000625 lux@F1.0, AGC ON; 0 lux with LED ON
Shutter SpeedAuto
WDR120dB
S/N Ratio≥ 50dB
BLCYes
HLCYes
Digital NR3D NR
Angle AdjustmentPan: 0°~360°; Tilt:-60°~10°;
Lens
Lens TypeFixed focal lens, 2.8mm and 3.6 mm optional
ApertureF1.0
FOV2.8 mm @F1.0, H.FoV: 113°; V.FoV:60°; D.FoV:133°
3.6 mm @F1.0, H.FoV: 95°; V.FoV:50°; D.FoV:114°
Lens MountM16
DORI
DORI2.8mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
3.6mm, D: 62 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeFull power mode: up to 20 m; Low power mode: up to 10 m
Smart LEDYes
Video & Audio
Video CompressionMain stream: H.265+ / H.265/ H.264+ / H.264
Sub/Third stream: H.265+ / H.265/ H.264+ / H.264 MJPEG
H.264 Compression StandardBaseline Profile/Main Profile/High Profile
Resolution4MP (2560×1440 ), 3MP (2304×1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 640 × 480,  CIF, 480 ×240
Main Stream60Hz:4MP/3MP/1080P/720P(1~15fps); 50Hz:4MP/3MP/1080P/720P(1~12fps)
Sub Stream60Hz:720P/D1/CIF (1~15fps); 50Hz:720P/D1/CIF (1~12fps)
Third Stream60Hz:720P/640 × 480 (1 fps); 50Hz:720P/640 × 480 (1 fps)
Bit Rate16Kbps ~ 8Mbps
Bit Rate TypeVBR/CBR
Audio CompressionG711A / U
Image SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc.
adjustable through client software or web browser
ROIEach ROI to be configured separately
Mobile Communication
SIM Card TypeMicro SIM
FrequencyLTE-TDD: Band 38/39/40/41;
LTE-FDD: Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28;
WCDMA: Band 1/5/8;  GSM: Band 2/3/5/8
StandardLTE-TDD, LTE-FDD, WCDMA, GSM, 4G Cat4
PIR
PIR AngleHorizontal: 82°, vertical:50°
PIR RangeUp to 15 m
Interfaces
Network1 CH RJ45 10 M/100 M self-adaptive Ethernet port
Audio1 CH built-in MIC, 1 CH built-in Speaker
Warning Light1 blue LED light, 1 red LED light
RS-485Yes, half-duplex
StorageBuilt-in 64G eMMC storage (including system software);
Built-in micro SD card slot, up to 256GB
ResetYes
Functions
Remote MonitoringWeb Browser/TVT NVMS2.0/NVR/mobile APP
Web BrowserIE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+
Online ConnectionSupport simultaneous monitoring for up to 3 users;
Support multi-stream real time transmission
Network ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, SNMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS, P2P, HTTP POST
Interface ProtocolONVIF
Intelligent  AnalyticsVideo exception detection, region intrusion detection (human/vehicle classification), line crossing detection(human/vehicle classification), and abandoned / missing object detection, PIR
Smart AlarmMotion detection, SD card error, SD card full
LinkageUpload to memory card/eMMC/FTP, notify surveillance center, audible warning, trigger recording, trigger capture, send email
General functionWatermark, video mask, heartbeat, corridor pattern
SecurityVideo encryption, firmware encryption, HTTPs encryption,  configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP
General
PowerPower Consumption: < 5W
Lower Power Mode:< 3.5 W (4 G working)
Power Supply: 12 VDC ± 25% * for debugging only
60 W ±2 W  Solar panels
Startup and Operating Conditions-20℃ to 50 ℃ (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Gross WeightApprox. 16.9KG (without LFP battery); Approx. 20.65 KG (with LFP battery)
Battery
Batter TypeLFP battery (lithium iron phosphate battery)
Capacity23Ah
Battery Voltage12.8V
Operating TemperatureCharging: -20 ℃ to 45 ℃ (-4 °F to 113 °F) ; Discharging: -20 ℃ to 60 ℃ (-4 °F to 140 °F)
Battery LifeMore than 2000 cycles
Protection
ProtectionCamera:  IP67
Wind Resistance 12 level
CertificateCE, FCC, Complies with Directive EU RoHS,  WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
Li-Battery: UN38.3, CE, FCC
4G Communication: SRRC/CCC, GCF, CE/UKCA, PTCRB, FCC, IC, Anatel, IFETEL, KC, NCC, JATE/TELEC, RCM, FAC, NBTC, IMDA, ICASA,etc.
