  • TD-7524TE3(AU/WR2)

TD-7524TE3(AU/WR2)

2MP Full-color HD Analog Turret Camera


TD-7524TE3(AU/WR2)       Fixed lens :  2.8mm


  • TD-7524TE3(AU/WR2)

Introduction

Specification

Accessories

Downloads

Features

1080P real-time image, high resolution, true color

AHD / TVI / CVI lossless HD video output

Support 960H CVBS output

Up to 1000 TVL resolution

CMOS progressive scan, perfectly capturing the moving object

Support OSD menu

High speed, long distance and real time transmission

24/7 full color imaging

LED can be turned on or off automatically

Support noise reduction function

20 ~ 30m LED distance

IP67

Support coaxial audio transmission

Support COC

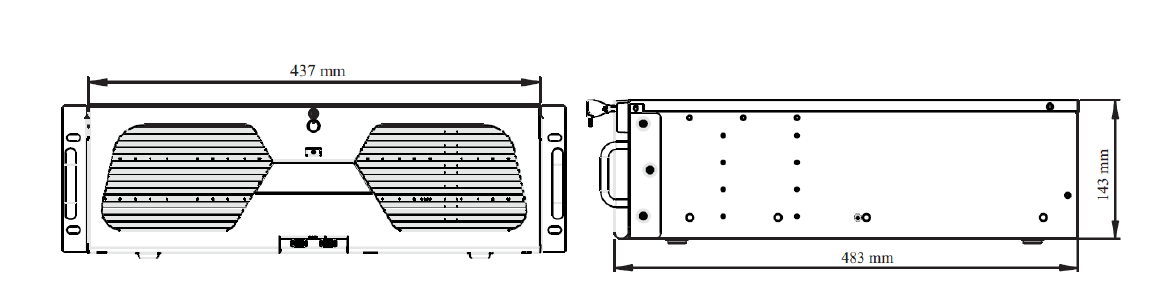

Dimension


ModelTD-7524TE3
Camera
Image Sensor1 / 2.8" CMOS
Resolution2MP
Image Size1920 x 1080
Video OutputAHD / TVI /CVI/CVBS
Audio1CH built-in MIC
Image SystemPAL / NTSC
Electronic ShutterAuto
LED Distance20 ~30 m
Frame Rate30fps(60Hz); 25fps (50Hz)
Min. Illumination0 lux (LED ON)
Lens2.8mm
Lens MountM12
S / N Ratio≥52dB ( AGC OFF )
Ingress ProtectionIP 67
Functions
Function ControlOSD ( COC Control )
Smart LEDManual or Auto mode
ICRNO
Digital WDRYes
Digital DNRYes, 2D DNR
AGCYes
Auto White BalanceYes
BLCYes
Front Light CompensationNO
DefogNO
HLCYes
SharpnessYes
ContrastYes
Image SettingYes
Defect CorrectionAuto
LanguageChinese and English
Angle AdjustmentPan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360°
Others
Power SupplyDC12V ( ± 15% )
Power ConsumptionLED OFF : < 1W; LED ON : < 4W
Working Environment- 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
Dimensions ( mm )Ф 94.6 x 82.8
Weight ( net )Approx. 0.39KG
