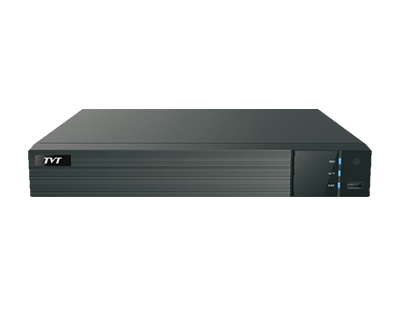

TD-3316H2-A2/TD-3332H2-A2
16/32CH NVR
12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P HD NVR
TD-3300H2-A2 series supports 16/32 CH 12MP / 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280x1024/960P/ 720P high definition IP input,TD-3300H2-A2 series supports 16/32CH IPC input , simultaneous 16CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Introduction
Specification
Downloads
Features
Support 16/32CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF IPC Input
H.265S/H.265+/H.265/H.264
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows styleoperation by mouse
Multi-type recording: manual / timed / motion / sensor / POS /AI recording
Playback : 16 CH simultaneous playback
Search : time slice, time, event, tag and smart search
Support face detection and comparison
Support multiple VCA(Video ContentAnalytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
Support license plate recognition
Support POS information overlay on live view and playback
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remotenetwork transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS

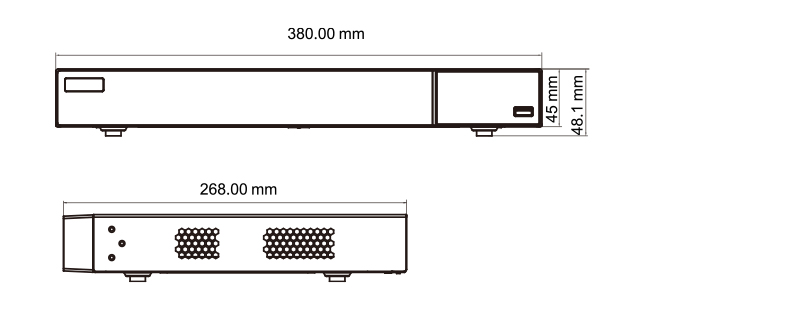

Dimension
| Model | TD-3316H2-A2 | TD-3332H2-A2 | |
| System | OS | Embedded Linux | |
| Video | Compression | H.265S/H.265+/H.265/H.264 | |
| IP Video Input | 16CH IPC input | 32CH IPC input | |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | ||
| Network Bandwidth | 160Mbps/160Mbps (incoming/outgoing) | 192Mbps/192Mbps (incoming/outgoing) | |
| Output | HDMITM1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||
| HDMITM2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |||
| VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |||
| VGA and HDMITM1 output the same video source | |||
| Audio | Network Input | 16 CH IPC audio input | 32 CH IPC audio input |
| 2-way Audio | RCA × 1 | ||
| Local Output | RCA × 1 | ||
| Compression | G.711(U/A) | ||
| Record | Record Stream | Dual stream recording | |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | ||
| Frame Rate | NTSC: 30fps; PAL: 25fps | ||
| Playback | Simultaneous Playback | Max 16CH | |
| Search | Time slice / time / event / tag / smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View/ Playback | 1CH 12MP/4CH 1080P | |
| Multi-Screen Display Mode | Mode | Dual output mode (default mode): supports HDMITM2 output, but doesn’t support AI by device | |
| AI mode: HDMITM2 output and 12MP video input (live view/playback) | |||
| are unavailable, but 8MP video input supports | |||
| Dual Output Mode | 16CH (HDMITM1) +9CH (HDMITM2) | 32CH (HDMITM1) +4CH (HDMITM2) | |
| AI Mode | 16CH(HDMITM1) | 24CH (HDMITM1) | |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. | |
| Input | 8 CH local alarm input | ||
| Output | 4 CH | ||
| Triggering | Record, snap, preset, e-mail, etc. | ||
| Face | Face Detection Performance (AI by IPC) | 16CH | 32CH |
| Face Detection Performance (AI by Device) | 2 CH (2MP) | ||
| Face Match Performance | 6 CH | ||
| Comparison Capability | 18 pictures / second | ||
| Face Picture Database | 32 libraries | ||
| 10000 Face Pictures | |||
| Face Picture Search | Search by picture is supported | ||
| Database Management | Add, modify, delete and search face pictures | ||
| Face Picture Adding | Add face pictures through APP, WEB and external import | ||
| Face Picture Comparison | Support allow list, block list and stranger match alarm | ||
| Track | Track display on a map | ||
| Face | Statistical Graph of Information | Bar graph | |
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | ||
| Video Structure Analysis | Human/Vehicle Classification | Yes | |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP | |
| Plate Recognition | Yes | ||
| Network | Interface | RJ 45 1000 Mbps × 2 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. | ||
| Client Connection | Max. 10 users access | Max. 20 users access | |
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA × 2, max 10T for each HDD | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard | |
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | ||
| Remote Controller | Optional | ||
| Others | Power Supply | DC12V/4A | |
| Consumption | ≤ 20W ( without HDD ) | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | ||
| Dimensions(mm) | 380 × 268 × 45 ( W × D × H ) | ||
| Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | ||
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
