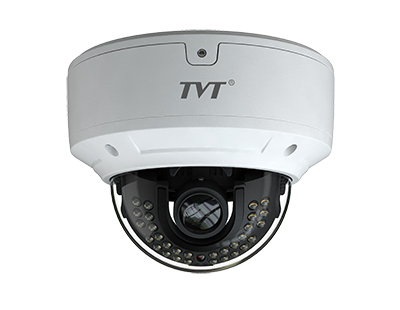

TD-7523AE2H
2MP HD Analog IR Dome Camera
TD-7523AE2H(D/FZ/SW/IR2) Manual Zoom Lens 2.8-12mm
Introduction
Specification

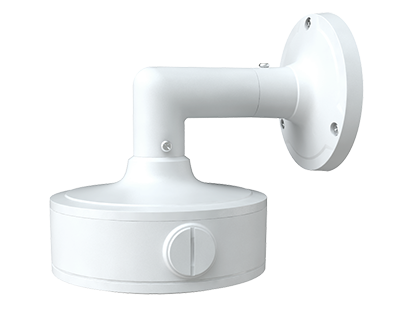

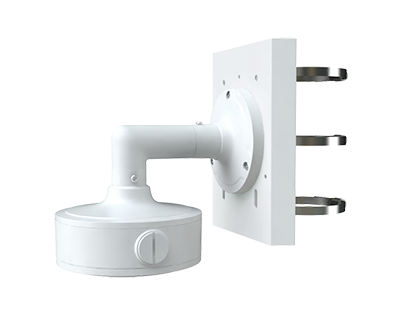

Accessories
Downloads
Features
1080P real-time image, high resolution, true color
AHD / TVI / CVI /CVBS standard and lossless video output
Up to 1000 TVL resolution
CMOS progressive scan, perfectly capture the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night, digital WDR
Support noise reduction function
20 ~ 30m IR night view distance
IP66 & IK10 ingress protection
Support COC

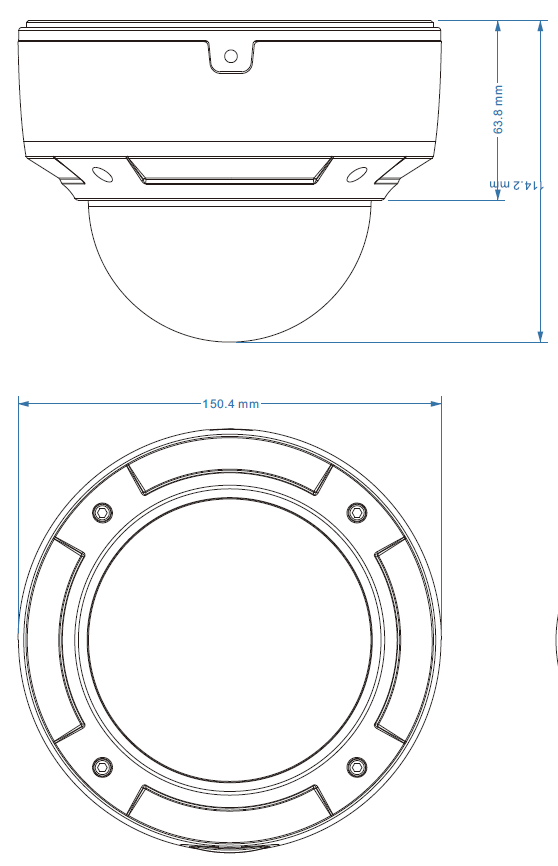

Dimension
| Model | TD-7523AE2H |
| Camera | |
| Image Sensor | 1 / 2.9 "CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto; 1 / 50s ~ 1 / 100000s ( PAL );1 / 60s ~ 1 / 100000s ( NTSC ) |
| IR Distance | 20 ~ 30 m |
| Frame Rate | 30fps(60Hz); 25fps (50Hz) |
| Min. Illumination | Color : 0.001 lux@F1.2, AGC ON; B/W : 0 lux with IR |
| Lens | 2.8~12 mm |
| Lens Mount | D14 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP66 & IK10 |
| Functions | |
| Function Control | OSD ( COC Control ) |
| Day & Night | ICR |
| Digital WDR | Yes |
| 2D/3D NR | Yes |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror Image | No |
| Smart IR | No |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~77°; Rotation: 0°~360° |
| Others | |
| Power Supply | DC12V ( ± 10% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 4W |
| Working Environment | - 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
| Dimensions ( mm ) | Ф150.4 x 114.2 |
| Weight ( net ) | Approx. 0.93KG |
