TD-3316H2-16P-B2
16CH PoE NVR
TD-3316H2-16P-B2 supports 16CH 12MP /9MP// 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280x1024/960P/ 720P high definition IP input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
TD-3316H2-16P-B2 integrates with 16 PoE network ports and supports 16 CH IPC direct connection to NVR , simultaneous 16 CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Introduction
Specification
Downloads
Features
Supports 16 CH 12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF IPC Input
H.265S/H.265+/H.265/H.264
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-type recording: manual / timed / motion / sensor / POS / AI recording
Playback : 16 CH simultaneous playback
Search : time slice, time, event, tag and smart search
Supports face detection and comparison
Supports multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
Supports license plate recognition
Supports POS information overlay on live view and playback
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Supports 16CH PoE IPC direct connection to NVR via PoE ports
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises Supports NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS

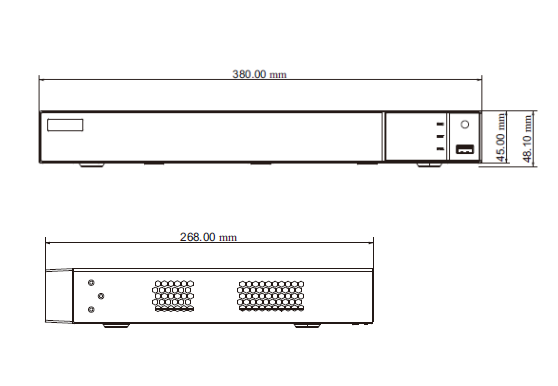

Dimension
| Model | TD-3316H2-16P-B2 | |
| System | OS | Embedded Linux |
| Video | Compression | H.265S/H.265+/H.265/H.264 |
| IP Video Input | 16CH IPC input | |
| Resolution | 12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Network Bandwidth | 192Mbps/192Mbps (incoming/outgoing) | |
| Output | HDMITM : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA can be set to output the same or different video source with HDMITM | |
| Multi-screen Display | Main output: 1/4/6/8/9/13/16 (live view) AUX output: 1/4/6/8/9 (live view) Max. 16+9CH local live view | |
| Audio | Network Input | 16 CH IPC audio input |
| 2-way Audio | RCA × 1 | |
| Local Output | RCA × 1 | |
| Compression | G.711(U/A) | |
| Record | Resolution | 12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Frame Rate | 12MP:20fps; 9MP or lower resolution: NTSC: 30fps; PAL: 25fps | |
| Playback | Simultaneous Playback | Max 16CH |
| Search | Time slice / time / event / tag / smart search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/ Playback | 1CH 12MP/4CH 1080P |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. |
| Input | 8 CH local alarm input | |
| Output | 4 CH | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Face | Face Detection Performance (AI by IPC) | 16 CH |
| Face Detection Performance (AI by Device) | 2 CH (2MP) | |
| Face Match Performance | 6 CH | |
| Comparison Capability | 18 pictures / second | |
| Face Picture Database | 32 libraries 10000 Face Pictures | |
| Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
| Face Picture Comparison | Support successful face recognition alarm and stranger match alarm | |
| Track | Track display on a map | |
| Statistical Graph of Information | Bar graph | |
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 16CH |
| Human/Vehicle Classification (AI by Device) | 2CH (2MP) | |
| Video Metadata | Human/Vehicle Attribute Analysis(AI by IPC) | Yes |
| Other Functions | Fisheye | Supports fisheye dewarping via NVR/Web Client and mobile APP |
| Plate Recognition (AI by IPC) | Yes | |
| PoE | PoE Port | RJ 45 100Mbps × 16 |
| Standard | IEEE802.3AF/AT | |
| Output Power | ≤ 150W | |
| Network | Interface | RJ 45 1000 Mbps × 1 |
| Protocol | TCP / IP, HTTP, HTTPs, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP | |
| Client Connection | Max. 64 users access | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA × 2, max 10T for each HDD |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard |
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | |
| Remote Controller | Optional | |
| Others | Power Supply | DC48V/3.75A |
| Consumption | ≤ 20W ( without HDD and PoE power supply ) | |
| Certificate | CE, FCC | |
| Environmental Protection | Directive EU RoHS, REACH and WEEE | |
| Dimensions(mm) | 380 × 268 × 45 ( W × D × H ) | |
| Working Environment | -10 ~ 50 ℃，10% ~ 90% humidity | |
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
