TD-5332E1-ST

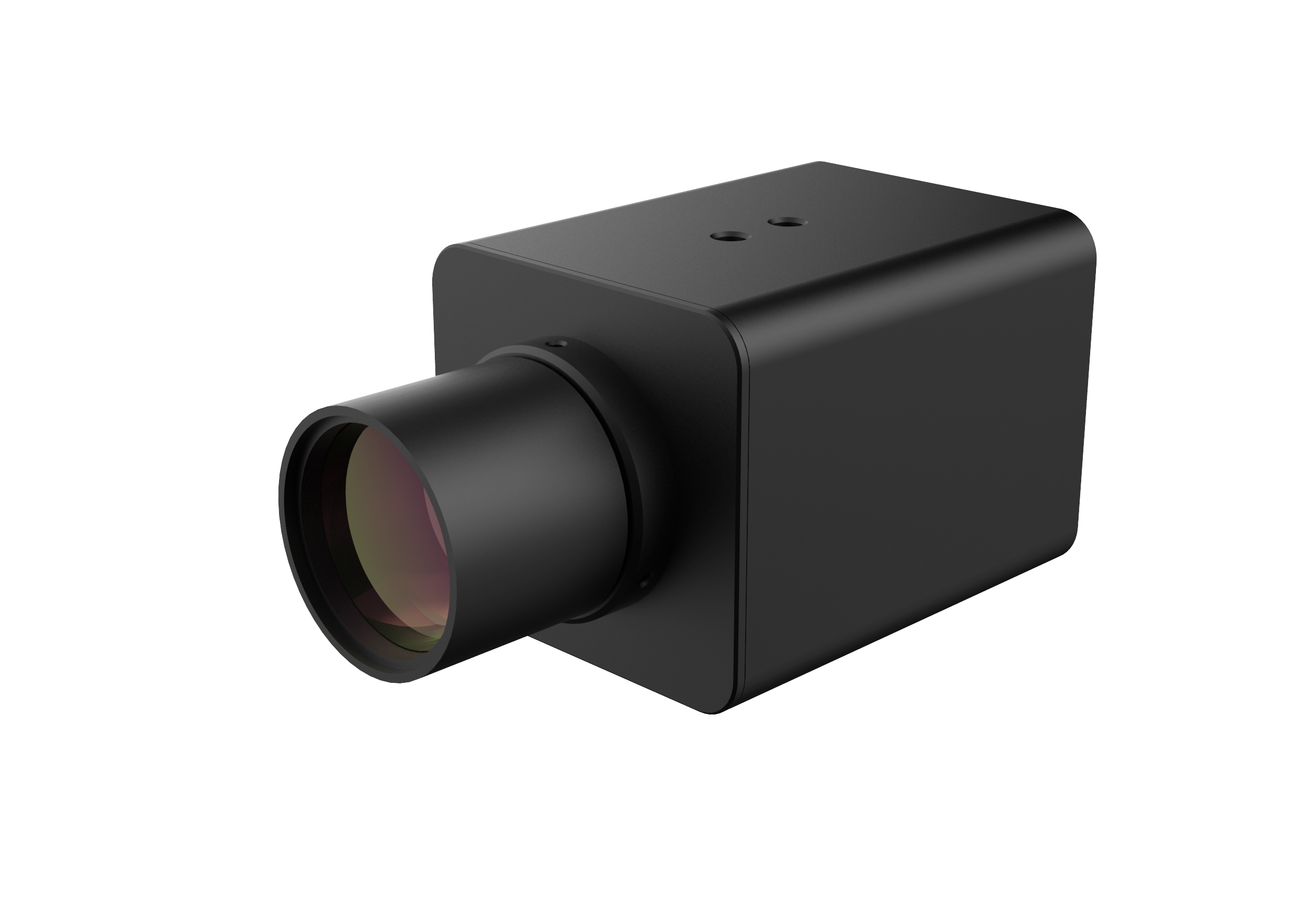

Thermal Network Box Camera
TD-5332E1-ST(6/PE) Thermal Lens :6mm
TD-5332E1-ST(12/PE) Thermal Lens :12mm
TD-5332E1-ST(19/PE) Thermal Lens :19mm
TD-5332E1-ST(25/PE) Thermal Lens :25mm
TD-5332E1-ST(35/PE) Thermal Lens :35mm
TD-5332E1-ST(50/PE) Thermal Lens :50mm
Introduction
Specification

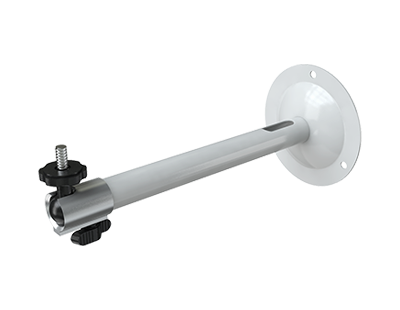

Accessories
Downloads
Features
Resolution：384 × 288
17μm，NETD: < 50mK(@25°C, F#=1.0)
Temperature range：-20°C~150°C or 0°C~550°Coptional
Multi-palette: whit hot, black hot, rainbow, iron oxide red, self-defined, etc.
Intelligent analytics: region intrusion detection, line crossing detection temperature exception alarm, fire detection

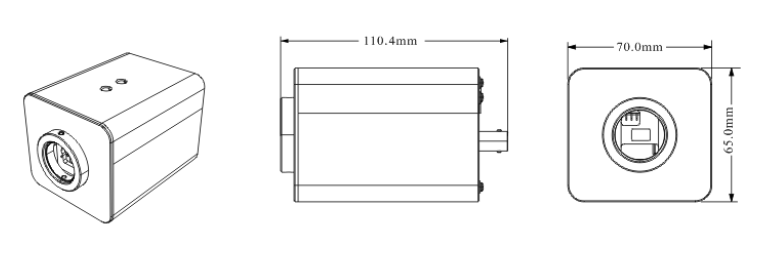

Dimension
| Model | TD-5332E1 |
| Thermal Module | |
| Detector Type | 17µm 384×288 α-Si uncooled focal plane array detector |
| NETD | < 50mK(@25°C, F#=1.0) |
| Lens | 6.5/8/12.3/19/25/35/50mm |
| Focus | Fixed |
| Field of View (H×V) | 60° × 44.1°/44.4° × 34°/29.7° × 22.5°/19.5° × 14.7°/15° × 11.2°/10.7° × 8°/7.5°×5.6° |
| Color Palettes | Black hot, white hot, rainbow, iron oxide red, etc. |
| Correction Function | Yes, manual/auto/external |
| Image | |
| Video Compression | H.265/H.264/MJPEG |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile |
| Bit Rate Type | VBR/CBR |
| Bit Rate | 128Kbps ~ 4Mbps |
| Resolution | 704×576，CIF，480×240 |
| Main Stream | 60Hz: 704×480(1~30fps); 50Hz: 704×576(1~25fps) |
| Sub Stream | 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) |
| Third Stream | 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) |
| Image Overlay | Temperature, time, date, channel number, channel name and self-defined texts can be overlaid on the live image |
| Audio Compression | G711A/U |
| Image Mirror & Flip | Yes |
| Noise Reduction | Yes，2D/3D NR |
| ROI | 4 regions of interest，each one can be set separately |
| Interface | |
| Network | RJ45，10/100Base-T |
| Video Output | 1BNC connector, 75 Ω |
| Audio | 1CH audio input; 1CH audio output |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| RS485 | Yes |
| Alarm | 2CH alarm input; 2 CH alarm output |
| Function | |
| Temperature Measurement | Temperature Range -20°C ~150°C or 0°C~550°C optional |
| Temperature Accuracy：±2℃ | |
| Temperature Alarm | 10 rules in total (Point up to 10; Line: 2 recommended; Area: 2 recommended) |
| Over temperature alarm, low temperature alarm; | |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable |
| Remote Monitoring | Web browser / NVMS/NVR/Mobile APP |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, Qos |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
| Intelligent Analytics | Line crossing detection, intrusion detection, fire detection, temperature exception detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, ROI |
| PoE | Yes，IEEE802.3af |
| IR Distance | No |
| Others | |
| Power | AC24V/DC12V/PoE |
| Power Consumption | <7W |
| Working Environment | - 10°~50℃（accurate temperature measurement under 16~32℃); Humidity: < 95% (non-condensing) |
| Dimensions(mm) | 278.3 × 100.2 × 88.7 |
| Weight( net) | Approx.430g |
| Installation | Wall mounting; ceiling mounting |
