TD-2104NS-HP-H
4CH Hybrid DVR
TD-2104NS-HP-H supports 8MP/5MP/4MP/3MP/1080P/720P/WD1 analog and IP video input simultaneously. It adopts the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. TD-2104NS-HP-H supports 4 CH analog video input, 1 CH audio input, simultaneous 4 CH playback. The series of product can meet different
security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Introduction
Specification
Downloads
Features
4 CH TVI / AHD/CVI 8MP/5MP/4MP/3MP/1080P/720P/WD1video input 4 CH DVR supports 2 CH 8MP/5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default
4CH analog video input can be switched to 4CH IP video input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / sensor /motion / AI recording Playback : 4 / 8 CH simultaneously playback
Search: time slice, time, event, tag and smart search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
Authorization management, log review and device status review
HDMITM 4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phones Powerful mobile surveillance by smart phones with iOS and Andriod OS

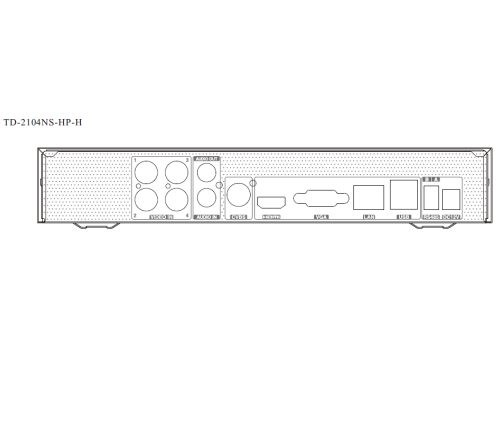

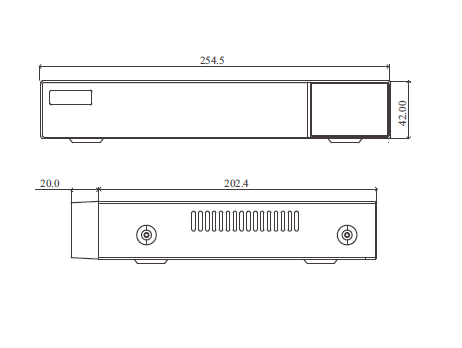

Dimension
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Model | TD-2104NS-HP-H | |
| System | OS | Embedded Linux |
| Video | Analog Video Input | BNC × 4 |
| BNC interface (1.0Vp-p; 75Ω) | ||
| TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) | ||
| IP Video Input | 2CH(up to 6CH) | |
| Up to 8MP@20fps, lower than 8MP @30fps | ||
| Total Input | 6CH | |
| Output | HDMITM × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 | |
| BNC × 1 : CVBS ( used as the main or spot output ) | ||
| Compression | H.264/H.265/H.265+ | |
| Multi-screen Display | 1 /4/6/9 | |
| Audio | Input | RCA ×1 |
| Output | RCA × 1 (linear, 600Ω) | |
| Two-way audio | Take up channel one audio input | |
| Compression | G.711(U/A) | |
| Record | Resolution | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1 |
| Frame Rate | Analog Channel: 4K@8fps (PAL/NTSC); 4K Lite@12fps/15fps (PAL/NTSC); 5MP@12fps (PAL / NTSC); 5MP Lite@20fps (PAL/ NTSC); 4MP/3MP@12fps / 15fps (PAL / NTSC); 4MP Lite/1080P/720P/WD1@25fps / 30fps (PAL / NTSC) | |
| IP Channel: 8MP @20fps (PAL / NTSC); lower than 8MP @25fps / 30fps (PAL / NTSC) | ||
| Bit Rate | 32Kbps ~ 4Mbps | |
| Mode | Manual, timed, motion, smart event | |
| Playback | Playback | 4CH |
| Search | Time slice / time / event / tag search | |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Alarm | Mode | Manual, motion, exception, smart event |
| Input | No | |
| Output | No | |
| AI Function | Smart Motion Detection Performance | 4CH |
| Perimeter Protection Performance | 1CH | |
| Network | Interface | RJ 45 100Mbps × 1 |
| Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x, FTP, RTP, | |
| RTSP, RTCP, NTP, SMTP, UDP,Websocket, SNMP, IGMP | ||
| Incoming Bandwidth | 16Mbps (max.40Mbps) | |
| Outgoing Bandwidth | 40Mbps | |
| Client Connection | Max. 10 users access | |
| MobileDevice | OS | iOS, Andriod |
| Storage | HDD | SATA× 1, up to 10TB per HDD |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | RS 485 | Yes (half-duplex), connect to PTZ or keyboard |
| USB | USB 2.0 × 2 | |
| Remote Controller | Optional | |
| Others | Power Supply | DC12V / 1.5A |
| Consumption | ≤ 10W ( without HDD ) | |
| Dimensions(mm) | 255 × 222 × 42 ( W × D × H ) | |
| Working Environment | -10~50°C, 10%~90% (humidity) | |
| Certificate | CE, FCC | |
| Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |
