TD-9342A3BH-SD

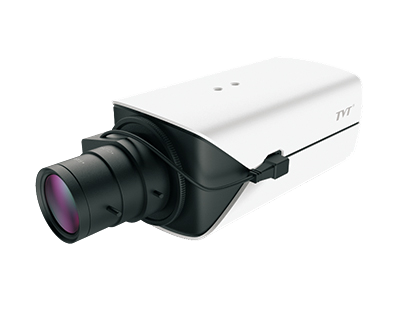

4MP Box Network Camera
TD-9342A3BH-SD(D/PE) Lens Mount : CS
Introduction
Specification
Accessories
Downloads
Features
H.265+/H.265/H.254+/H.254/MJPEG coding
Max. resolution: 2560 × 1440
Starlight
ICR auto switch, true day / night vision
3D DNR, true WDR, HLC, BLC, Defog and ROI coding
Built-in micro SD card slot; up to 256GB
1CH audio input; 1CH audio output; 1CH built-in MIC
2CH alarm input; 2CH alarm output
Support ABF
AC24V/DC12V/PoE power supply
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
AI function secondary development supported
Dimension
| Model | TD-9342A3BH-SD |
| Camera | |
| Image Sensor | 1 / 1.8" CMOS |
| Image Size | 2560 × 1440 |
| Electronic Shutter | Auto/manual; Manual mode: 1 /3s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | Color: 0.0009 lux@F1.2,AGC ON B&W:0.0004 lux@F1.2,AGC ON |
| Lens Mount | CS |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| S/N Ratio | ≥50dB |
| Digital NR | 3D DNR |
| Image | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920 × 1080 ), |
| 720P ( 1280 × 720 ), D1, VGA(640 × 480), 480 × 240, CIF | |
| Main Stream | 4MP/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Sub Stream | 720P/D1/CIF/VGA/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. |
| adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 10M/100M self-adaptive Ethernet port |
| Video Output | CVBS output (BNC × 1) |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC |
| Alarm | 2CH alarm input; 2CH alarm output |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| RS 485 | Yes |
| Functions | |
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
| Intelligent Analytics | Self-defined |
| General Function | Watermark, video mask, heartbeat, corridor pattern |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPS |
| Water-proof Grade | No |
| PoE | Yes , IEEE802.3af |
| Others | |
| Power Supply | AC24V/DC12V/PoE |
| Power Consumption | < 7W |
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 160.8 × 79 × 64 |
| Weight ( net ) | Approx. 0.5KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
