TD-9442E3B-A
4MP IR Water-Proof Bullet Network Camera
TD-9442E3B-A(D/PE/AR3) Fixed lens : 2.8 mm , 3.6mm
TD-9442E3B-A(D/AZ/PE/AR3) Motorized zoom lens : 2.8~12mm
Introduction
Specification
Accessories
Downloads
Features
H.265+/H.265/H.264+/H.264/MJPEG coding
Max. resolution: 2688 × 1520
ICR auto switch, true day / night vision
30 ~ 50m IR night view distance
3D DNR, HWDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Support SMD
Support NAT function
Multiple smart events can be enabled at the same time
Dual-system backups

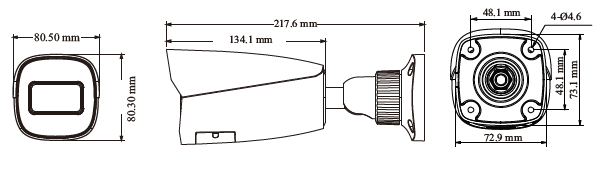

Dimension
| Model | TD-9442E3B-A | |||
| Camera | ||||
| Image Sensor | 1 / 3 "CMOS | |||
| Image Size | 2688 × 1520 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | DC Iris | ||
| Min. Illumination | 0.005 lux@F1.6,AGC ON;0 lux with IR | |||
| Lens | 2.8 mm@F1.6, H.FoV: 95.3°; V.FoV:53.2°; D.FoV:115.0° 3.6 mm@F1.6, H.FoV: 78.8°; V.FoV:42.3°; D.FoV:100.2° | 2.8~12mm@F1.3, H.FoV: 100.0°~28.9°; V.Fov: 54.5°~16.7°; D.FoV: 118°~35° | ||
| Focus | Fixed | Motorized | ||
| Lens Mount | M12 | Φ14 | ||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP (2688×1520), 2592×1520, 2K (2560×1440), 3MP(2304×1296), 1080P ( 1920×1080), 720P (1280×720 ), D1, VGA(640×480), 640×360, CIF, 480 × 240 | |||
| Main Stream | 1080P (60Hz:1~15fps; 50Hz:1~12fps)/ 720P/D1/VGA/640×360/480×240/CIF(60Hz: 1 ~ 30fps; 50Hz: 1~25fps) | |||
| Sub Stream | 720P/D1/VGA/640×360/480×240/CIF( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 (10/100 Base-T) | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 1 CH built-in MIC | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification) loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and video cast detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 60m(199ft) | 24m(79ft) | 12m(39ft) | 6m(19ft) |
| 3.6mm | 75m(246ft) | 30m(98ft) | 15m(49ft) | 7m(24ft) |
| 2.8~12mm(W) | 58m(193ft) | 23m(77ft) | 11m(38ft) | 5m(19ft) |
| 2.8~12mm(T) | 205m(675ft) | 82m(270ft) | 41m(135ft) | 20m(67ft) |
| Functions | ||||
| Remote Monitoring | Web Browser/NVMS/NVR/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 8 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP,FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, HTTP POST, NAT, QoS | |||
| Interface Protocol | ONVIF | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict,network disconnection, sensor alarm, audio alarm | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern,disarming, ANR, cloud upgrade | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 30 ~50 m | |||
| Ingress Protection | IP 67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | DC12V: <9W; PoE: <10.7W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 217.6 × 80.5 × 80.3 | |||
| Weight ( net ) | Approx. 0.67KG | Approx. 0.696KG | ||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
