TD-Y10A
USB Alarm Expansion Box
TD-Y10A
Introduction
Specification
Downloads
Features
Expand alarm interfaces
Up to 16 CH a
larm input, 6 CH alarm output
Support USB port
USB 5.0V power supply
It can be automatically searched by DVR / NVR and the number of alarm input / output can be displayed

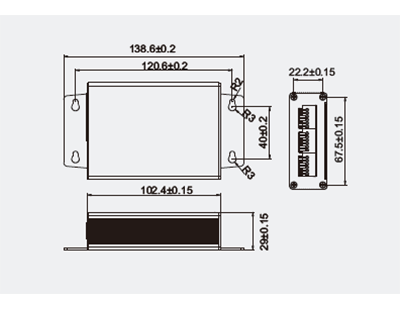

Dimension

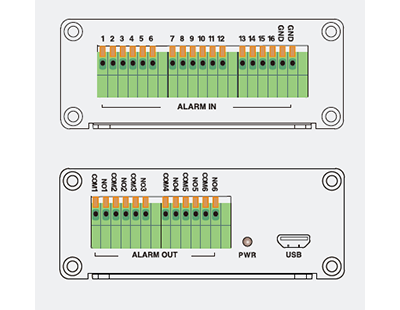

Rear Panel
| Model | TD-Y10A |
| Alarm Input | 16 |
| Alarm Output | 6 |
| USB | USB2.0 × 1 |
| Power | 5V / 1A |
| Power Consumption | ≤ 5W |
| Operating Temperature | - 10°C ~ 50°C |
| Operating Humidity | 10% ~ 90% |
