TD-9441S4

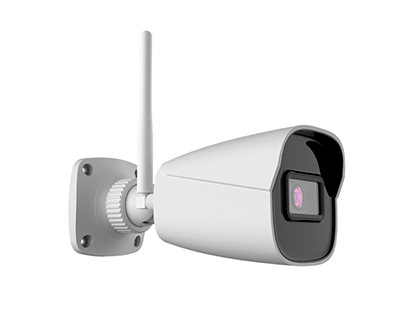

4MP IR Water-proof Bullet Network Camera
TD-9441S4(D/PE/WF/AR2) Fixed Lens ：2.8mm ，3.6mm
Introduction
Specification
Accessories
Downloads
Features
H.265 /H.264/MJPEG coding
Max.resolution: 4MP ( 2560 × 1440)
ICR auto switch, true day / night vision
3D DNR, WDR, HLC, BLC, smart IR, etc.
ROI coding
20~30m IR night view distance
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP 67 ingress protection
Support Wi-Fi
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Intelligent analytics
Dimension
| Model | TD-9441S4 | |||
| Camera | ||||
| Image Sensor | 1 / 3" CMOS | |||
| Image Size | 2560×1440 | |||
| Electronic Shutter | 1 / 1s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with IR | |||
| Lens | 2.8mm@F1.6, Horizontal FoV: 94°;Vertical FoV:50°;Diagonal FoV:115° 3.6mm@F1.6, Horizontal FoV:78°;Vertical FoV:40°;Diagonal FoV:97° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265 / H.264 Sub/Third stream: H.265 / H.264 / MJPEGv | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640×480), 480× 240, CIF | |||
| Main Stream | 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz: 720P/D1/VGA/CIF (1~30fps);50Hz: 720P/D1/VGA/CIF (1~25fps) | |||
| Third Stream | 60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SD card full, SD card error | |||
| Smart Event | Video exception (scene change, video blur and abnormal color detection), line crossing detection, region intrusion detection, abandoned/missing object detection | |||
| General Function | Watermark, video mask, heartbeat, corridor pattern | |||
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs | |||
| PoE | Yes | |||
| IR Distance | 20 ~ 30 m | |||
| Ingress Protection | IP67 | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 61.76m(202.62ft) | 24.70m(81.03ft) | 12.35m(40.51ft) | 6.18m(20.27ft) |
| 3.6mm | 79.13m(259.61ft) | 31.65m(103.83ft) | 15.83m(51.93ft) | 7.91m(25.95ft) |
| Wi-Fi | ||||
| Wireless Standards | IEEE802.11b/g/n | |||
| Frequency Range | 2.4GHz ~ 2.4835 GHz | |||
| Channel Bandwidth | 20MHz | |||
| Security | WEP, WPA-PSK/WPA2-PSK | |||
| Wireless Range | 80m | |||
| Transfer Rates | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 5W | |||
| Operating Environment | - 30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 167.6 × 74.7 × 148.2 | |||
| Weight ( net ) | Approx. 0.465KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
