TD-9382E3B-A
8MP HD AI Box Network Camera
TD-9382E3B-A(D/PE) Lens Mount : CS
Introduction
Specification

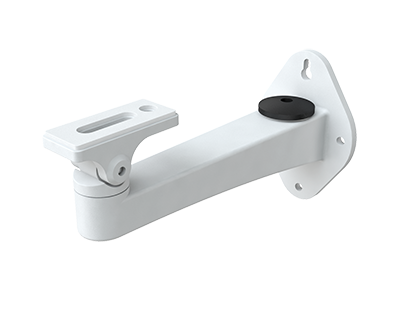

Accessories
Downloads
Features
H.265+/H265/H.264+/H264/MJPEG coding
Max.resolution: 3840 × 2160
ICR auto switch, t rue day / night vision
3D DNR, HWDR, HLC, BLC and ROI coding
Support electronic image stabilization
One CVBS output
1CH audio input, 1CH audio output and 1CH built-in MIC
Built-in micro SD card slot, up to 512GB
2CH alarm input; 2CH alarm output
AC24V/DC12V/PoE power supply
Support three streams
Support mobile surveillance by smart phones with iOS and Android OS
Support SMD
Support NAT function
Multiple smart events can be enabled at the same time
Dual-system backup
Dimension
| Model | TD-9382E3B-A |
| Camera | |
| Image Sensor | 1 / 2.8" CMOS |
| Image Size | 3840×2160 |
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | Color: 0.01 lux @ F1.2, AGC ON; B&W: 0.0053 lux@ F1.2, AGC ON |
| Lens Mount | CS |
| Wide Dynamic Range | 120dB |
| Day&Night | ICR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| S/N Ratio | ≥50dB |
| EIS | Yes |
| Digital NR | 3D DNR |
| Image | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 8MP(3840×2160), 6MP(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P(1920×1080), 720P(1280×720), VGA(640×480), 640×360, 480×240, D1, CIF |
| Main Stream | 8MP/6MP/4MP/2K/1080P(60Hz : 1~30fps; 50Hz : 1~25fps) |
| Sub Stream | 1080P/720P/D1/VGA/640×360/480×240/CIF(60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) |
| Third Stream | 720P(1~15fps)/D1/640×360/VGA/CIF/480×240(60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) |
| Bit Rate | 64 Kbps ~ 12 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, image flip, image mirror, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 (10/100 Base-T) |
| Video Output | CVBS output (BNC × 1) |
| Audio | 1CH audio input; 1CH audio output, 1CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 512GB |
| Reset | Yes |
| Alarm | 2CH alarm input; 2CH alarm output |
| RS 485 | Yes |
| Intelligent Analytics | |
| Intelligent Video Detection(IVD) | Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection |
| Statistics | Target counting by line/area, heat map |
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception |
| Face Detection | Face detection and face capture |
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature |
| Functions | |
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, NAT, QoS |
| Interface Protocol | ONVIF |
| API & SDK | Yes |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm |
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API |
| PoE | Yes, IEEE802.3af |
| IR Distance | No |
| Weather-proof Grade | No |
| Others | |
| Power Supply | AC24V/DC12V/PoE |
| Power Consumption | AC24V: max. 9.1W; DC12V: max. 6.6W; PoE: max. 5.8W |
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 160.8 × 79 × 64 |
| Weight ( net ) | Approx. 0.5KG |
| Material | Aluminum alloy body |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
