TD-9541E3H-A
4MP Network IR Water-Proof Dome Camera
TD-9541E3H-A(D/PE/AR2) Fixed Lens ：2.8 mm，3.6mm
Introduction
Specification

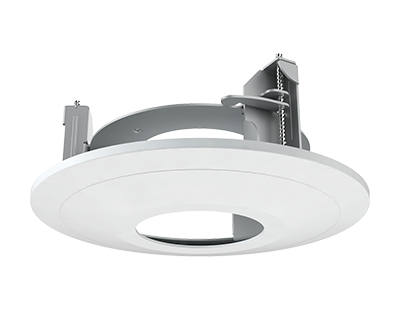

Accessories
Downloads
Features
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Max. resolution: 2560 × 1440
Starlight
ICR auto switch, true day / night vision
20 ~ 30m IR night view distance
3D DNR, HWDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Built-in micro SD card slot; up to 256GB
DC12V/PoE power supply
IP67 & IK10
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Support SMD
Support NAT function
Intelligent analytics
Dual-system backup
Dimension
| Model | TD-9541E3H-A | |||
| Camera | ||||
| Image Sensor | 1 / 1.8" CMOS | |||
| Max. Resolution | 2560 × 1440 | |||
| Electronic Shutter | 1/3 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0016 lux@F1.6,AGC ON; 0 lux with IR | |||
| Lens | 2.8mm@ F1.65, H.FoV: 109°;V.FoV:58°;D.FoV:132° 3.6 mm@F1.6, H.FoV: 89°; V.FoV: 51°; D.FoV:102° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~355°; Tilt:0°~70°;Rotation: 0°~180° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP (2560×1440), 3MP(2304×1296), 1080P (1920×1080), 720P (1280×720), D1, VGA(640×480), 640×360, CIF, 480 × 240 | |||
| Main Stream | 4MP/3MP/1080P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) | |||
| Sub Stream | 1080P (60Hz:1 ~ 15fps; 50Hz: 1 ~ 12fps ) 720P/D1/VGA/640×360/480×240/CIF (60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps) | |||
| Third Stream | 720P/D1/480×240/CIF (60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 (10/100 Base-T) | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1 CH built-in MIC | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | CH audio input; 1 CH built-in MIC | |||
| Intelligent Analytics | ||||
| Intelligent Video Detection (IVD) | Line crossing/ region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 52m(171ft) | 21m(69ft) | 10m(33ft) | 5m(16ft) |
| 3.6mm | 60m(197ft) | 24m(79ft) | 12m(39ft) | 6m(20ft) |
| Functions | ||||
| Remote Monitoring | Web Client/NVR/NVMS/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | TCP, UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, NAT, QoS , ICMP, IGMP | |||
| Interface Protocol | ONVIF | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming | |||
| Security | Firmware encryption, HTTPS encryption, configuration encryption, video encryption, illegal login lock,IP address filtering, 802.1x, log out after timeout basic and digest authentication for HTTP/RTSP/API service | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 20 ~30 m | |||
| Ingress Protection | IP67 & IK10 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 5.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Ø119 X 87.8 | |||
| Weight ( net ) | Approx. 0.65KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU), and REACH(EC1907/2006) | |||
