TD-3332H8-A3/TD-3364H8-A3
32/64CH NVR
Support 32/64CH 16MP/12MP /8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P /720P high definition IP video input
Introduction
Specification
Downloads
Features
H.265S/H.265+/H.265/H.264 coding
Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
Playback: 16 CH simultaneous playback
Search: time slice, time, event, tag, smart and target database search
Support face detection and comparison
Support multiple VCA (Video Content Analytics) events, such as region intrusion, tripwire, etc.
Support OS information overlay on live view and playback
Support RAID 0, 1, 5, 6, 10
Express and flexible backup via USB, network and so on
Preview, record, playback, backup and remote access are supported
DHCP, DDNS, PPPoE network protocol, etc.
Compatible with third-party IPCs
Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QR Code scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Dimension

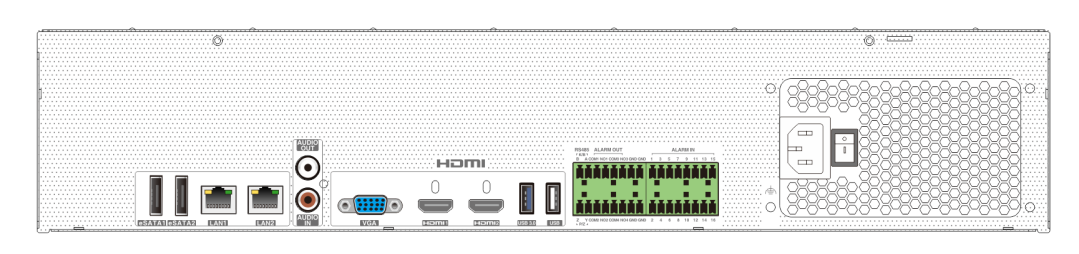

Rear Panel
| Model | TD-3332H8-A3 | TD-3364H8-A3 | |
| System | OS | Embedded Linux | |
| Video | IP Video Input | 32 | 64 |
| Network Bandwidth | Incoming: 320Mbps Outgoing: 320Mbps | Incoming: 512Mbps Outgoing: 512Mbps | |
| *When the AI function of the IPC is enabled, the actual incoming bandwidth (max. bitrate) is more than the set value in the NVR. | |||
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF | ||
| Output | HDMITM1: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 HDMITM2: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 VGA×1: 1920×1080, 1280×1024, 1024×768 (VGA and HDMITM1 output the same video source) | ||
| Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36 AUX output: 1/4/6/8/9/13/16 Max: 48 (32+16) | Main output: 1/4/6/8/9/13/16/25/32/36/64 AUX output: 1/4/6/8/9/13/16 Max: 80 (64+16) | |
| Compression | H.264/H.265/H.265+/H.265S | ||
| Audio | Network input | 32 | 64 |
| Local Input | RCA×1 (for two-way talk) | ||
| Local Output | RCA×1 | ||
| HDMITM Audio Output | Support | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF | |
| Frame Rate | N:30fps; P:25fps (IPC high frame rate mode: N:60fps; P:50fps) | ||
| Cloud Storage | Number of Channels | Up to 16CH | |
| Record | Resolution: 1080P/720P | ||
| Frame Rate: 15fps | |||
| Playback | Simultaneous Playback | 16CH | |
| Search | Time slice/time/event/tag/smart search | ||
| Function | Play, pause, FF, Rewind, digital zoom, previous frame, next frame, etc. | ||
| Decoding Capability | Live View/Playback | Non-AI mode (default mode): 4×16MP@30fps, 9×6MP@30fps, 16×4MP@30fps (AI by NVR and face comparison not supported; cloud storage supported) AI mode: 4×12MP@30fps, 9×5MP@30fps, 16×3MP@30fps (AI by NVR and face comparison supported; cloud storage not supported) | |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. | |
| Input | 16CH | ||
| Output | 4CH | ||
| Triggering | Record, snapshot, preset, e-mail, etct. | ||
| Face | Face Detection Performance (AI by IPC) | 32CH | 64CH |
| Face Detection Performance (AI by Device) | 4CH (2MP) or 4CH (4MP) or 2CH (8MP) or 1CH (16MP) | ||
| Face Match Performance | 16CH | ||
| Comparison Capability | 36 pictures/second | ||
| Face Picture Database | 32 libraries 10000 face pictures | ||
| Face Picture Search | Search by picture is supported | ||
| Database Management | Add, modify, delete and search face pictures | ||
| Face Picture Adding | Add face pictures through APP, WEB and external import | ||
| Face Picture Comparison | Supports successful face recognition alarm and stranger match alarm | ||
| Track | Track display on a map | ||
| Statistical Graph of Information | Bar graph | ||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | ||
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 32CH | 64CH |
| Human/Vehicle Classification (AI by Device) | 8CH (2MP) or 4CH (4MP) or 2CH (8MP) or 1CH (16MP) | ||
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) | Yes | |
| Other Functions | Fisheye | Supports fisheye dewarping via NVR/Web Client/mobile APP | |
| Plate Recognition (AI by IPC) | Yes (License plate database: up to 50,000 plate numbers) | ||
| Network | Protocol | TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP | |
| Interface | RJ45 10/100/1000Mbps ×2 | ||
| Client Connection | Max. 128 users access | ||
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA× 8，max 16TB per HDD | |
| RAID Type | RAID0,1,5,6,10 | ||
| E-SATA Interface | 2 | ||
| Port | USB | USB3.0× 1；USB2.0 × 2(Front:1)； | |
| RS485 | Yes (full-duplex) | ||
| Remote Controller | Optional | ||
| Others | Power | ATX-200W | |
| Consumption | ≤ 30W (without HDD) | ||
| Dimensions | 445 × 436 × 90mm （W×D×H） | ||
| Certificate | CE, FCC | ||
| Environmental Protection | RoHS, WEEE, and REACH | ||
| Working Environment | -10~50℃; Humidity: 10%~90% | ||
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
