C14

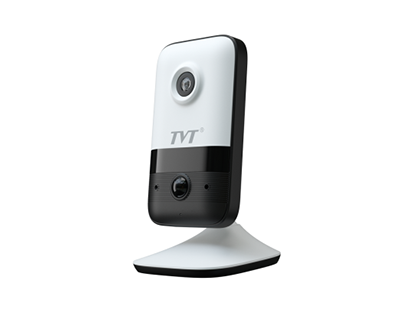

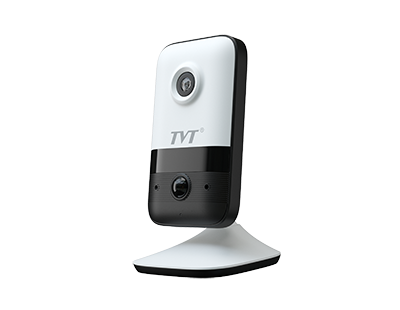

4MP Cube Wi-Fi Network Camera
C14 Fixed Lens : 2.1mm
Introduction
Specification
Downloads
Features
Max. resolution: 4MP (2560×1440)
ICR auto switch, true day/night
0.3-10m IR night view distance
3D DNR, BLC, HLC, etc.
Support dual streams
Support 2.4G Wi-Fi
Support mobile app for remote management and viewing of devices
DC12V/PoE power supply
Support P2P
Dimension
| Model | C14 |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Image Size | 2560×1440 |
| Electronic Shutter | 1/3 s ~ 1/100000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | Color: 0.0035lux@F1.2,AGC ON; B&W: 0 lux with IR |
| Lens | 2.1mm @F2.1; horizontal field of view: 137° |
| Lens Mount | M12 |
| WDR | 78dB |
| BLC | Yes |
| HLC | Yes |
| Defog | No |
| DNR | 2D/3D NR |
| Angle Adjustment | Pan: 0°~230°; Tilt: 0°~71°; Rotate: 0°~360° |
| Image | |
| Video Compression | Main stream: H.265+/ H.265/H.264+/H.264 ； Sub stream: H.265+/ H.265/H.264+/H.264/MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Bit rate Type | VBR/CBR |
| Bit Rate | 64Kbps ~ 6Mbps |
| Resolution | 4MP (2560×1440), 3MP (2304×1296) , 1080P (1920×1080) , 720P(1280×720) , D1, VGA (640×480), 640×360, 480×240, CIF |
| Main Stream | 4MP/3MP/1080P/720P (60Hz:1~30fps; 50Hz: 1~25fps) |
| Sub Stream | 720P/D1/VGA/640×360/480×240/CIF (60Hz:1~30fps; 50Hz: 1~25fps) |
| Image Setting | Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, image flip, etc., adjustable through client or web browser |
| Audio Compression | G711A/U |
| Region of Interest | 8 regions of interest; each region can be configured separately |
| APP/Cloud | |
| WIFI Configuration | Configure Wi-Fi network by scanning the QR Code |
| Snapshot | Yes |
| Record | Yes |
| Two-way Audio | Yes |
| Listen | Yes |
| Storage | SD card storage |
| Playback | SD card storage |
| Sharing Device | Support sharing with friends |
| Interface | |
| Network Interface | 100M RJ45 |
| Audio | Built-in MIC×1, built-in speaker×1; echo cancellation supported |
| Alarm | 1CH alarm input; 1CH alarm output |
| Reset Button | Yes |
| PIR | Horizontal angle: 100°; Range: 5m |
| Storage | Built-in micro SD card slot, up to 256G |
| WiFi | 2.4G WiFi function, IEEE802.11b/g/n， Up to 50m wireless range |
| Indicator | Yes |
| Function | |
| Remote Monitoring | Web client/mobile APP client |
| Online Connection | Support simultaneous monitoring for up to 4 users and multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, SNMP, FTP, 802.1x, UPnP, HTTPS, HTTP, HTTP POST, RTMP, QoS, P2P |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion detection, sensor alarm, PIR alarm, audio alarm, Person detection alarm, SD card full, SD card error, IP conflict, cable disconnection, video exception |
| Intelligent Analytics | Line crossing detection/region intrusion detection (human/vehicle classification) |
| General Function | Watermark, IP address filtering, video mask, illegal login lock, disarming, cloud upgrade, ANR |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API services |
| IR Light Distance | 0.3-10m |
| Water-proof Grade | No |
| PoE | Yes, IEEE802.3af |
| Others | |
| Power | DC12V/POE |
| Power Consumption | <5W |
| Environmental Protection | RoHS 2.0，REACH，WEEE， directive94/62/EC |
| Working Environment | -20℃~50℃, Humidity: less than 95% (non-condensing) |
| Dimensions(mm) | 130mm×71.7mm×71.7mm |
| Weight (net) | Approx.0.14KG |
| Installation | Wall mounting; Ceiling mounting; desktop mounting |
