TD-8843IM2N(PE/WP/37M/VL80) / TD-8843IM2N(PE/WP/37M/VL81)

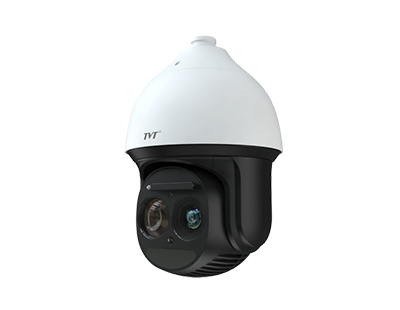

37X IR Laser 800m Network PTZ Camera


TD-8843IM2N(PE/WP/37M/VL80)     4MP 37X 800m laser AI 8-In Turret PTZ Camera

TD-8843IM2N(PE/WP/37M/VL81)     50/60fps 4MP 37X 800m laser AI 8-In Turret PTZ Camera

  • 2,329

Introduction

Specification

Accessories

Downloads

Features

Top-notch image quality

Both adopt 1/1.8″ large image format, P-IRIS and Sony 4th Starvis sensor, which could output top-notch picture quality at film cinema level.

Superior low-light color performance

Improve low-light performance 4x time than last gen contributing by F1.2 large aperture and Sony Stavis technology.

800m Laser IR distance

The Gen2 adopts a more powerful laser illuminator, which gives up 3x times IR beam energy, and thus could monitor above 800m in the pitch-black environment.

Lamps smears suppress

Suppress the strong light from headlamps and streetlamps, and distinguish human face details behind the car window glass from several hundred meters away in the night.

Multiple Deep-learning VCA

The built-in 1.5Tops AI engine could support multiple AI rules running at the same time: human/vehicle/no-motor classification, perimeter protection, face detection and capture, CPL, human/vehicles smart-tracking, etc.

Large on-board data storage

The on-board 4GB memory could be used to load, store a database of various objects IDs, such as ANP, facial ID and barcode. This could fasten the searching, comparing process in 1 second comparing to download from back-end (NVRs).

ONVIF protocol, API

This PTZ family conforms to the ONVIF, ensuring interoperability between surveillance video products regardless of manufacturers.

Strong protection for harsh weather

The gen has full-metal housing, IP67 and IK10 strong protection which support long-time working harsh weather such as: windstorm, sea salty corrosion, desert and high-land with strong sun radiation. The built-in heater supports cold-boot under zero 40 degrees, and the water-wiper supports working in tropical rainy area.

Rich accessories

Various mounting brackets including junction box,

 hi-power PoE Midspan or power adaptor support flexible in-field wiring and mounting.

Dimension



Camera ModuleTD-8843IM2N(PE/WP/37M/VL8x), x=0,1TD-8883IM2N(PE/WP/37M/VL80)
Image sensor1/1.8" progressive CMOS (SONY IMX664)1/1.8" progressive CMOS (SONY IMX678)
Max resolution2560x14403840x2160
Mini. IlluminationColor:0.0005 Lux @ (F1.2,AGC ON);
B/W:0.0001 Lux @ (F1.2, AGC ON).
0Lux with IR
Color:0.001 Lux @ (F1.2,AGC ON);
B/W:0.0002 Lux @ (F1.2, AGC ON).
0Lux with IR
Image settingSaturation, Brightness, Contrast, Sharpness, AGC, AWB, etc. adjusted by client
Shutter SpeedVL80:50Hz:1/25s-1/25,000s, 60Hz: 1/30s-1/30,000s.      VL81:50Hz:  1/50s-1/50,000s,60Hz:1/60s-1/60,000s
White BalanceAuto/Manual/Indoor/Outdoor
Gain controlAuto/Manual
SNR≥52dB
Day & Night controlAuto Mode, Manual Mode, Scheduled-switch, Timer.
Focus controlAuto, Manual (Near/Far)
Iris controlAuto/Manual
Noise Reduction2D/3D DNR, Auto/Manual
AE EnhancementBLC, HLC, HDR
Digital Zoom16X
Image StabilizerDIS
Optical DefogBuilt-in optical defog filter
Privacy Mask4 areas per scene
Picture overlayLogo picture could be overlaid on video, 16x16,24x24,32x32,48x48,64x64,96x96,128x128pixels
OSD overlayMax 15 characters/line, 8 lines, white or red font color, text such as week, date, time
LensTD-8843IM2N(PE/WP/37M/VL8x),x=0,1TD-8883IM2N(PE/WP/37M/VL80)
Focus lengthf= 6 ~ 222mm lens,37x optical zoom±5%
Zoom SpeedApprox. 5.2s (optical zoom, wide-tele) ±5%
Field of ViewHorizontal:59° to 1.98°. Vertical: 34.14° to 1. 12°.Diagonal: 67.08° to 2.27°. (wide-tele) ±5%
Image distancewide: 1.0m ~ INF; tele: 1.5m ~ INF
Aperture typeF1.2~F4.6(wide-tele), P-IRIS, 6 slices Diaphragm, support auto/manual
IRCut TypeRemovable IR Cut filter, absorbing type to anti flare and smear by Sun and headlamps of vehicles
DORIFocus lengthf=6mmf=222mmf=6mmf=222mm
Detect95.3m(312.7f.t.)2,960m(8126.6f.t.)138.2m(453.4f.t.)4,293m(14,084f.t.)
Observe124m (129.7 f.t.)1,429m (3250.7 f.t.)54.8m(217.5 f.t.)1,706m (5,589 f.t.)
Recognize19.06m(62.5 f.t.)592m(1625.3f.t.)27.6m(90.6 f.t.)858.6m(2,817f.t.)
Identify7.9m (31.3 f.t.)296m (812.7 f.t.)13.8m(31.3 f.t.)429.3m(1,408f.t.)
PTZ
Pan Range360°endless
Pan speedConfigurable, from 0.1~180°/s; Preset speed: 240°/s
Tilt RangeMechanical: from -25° to 155°, auto flip at 90°
Tilt SpeedConfigurable, from 0.1°~150°/s, Preset speed: 180°/s
Proportional ZoomYes
Preset360
Cruise8 cruises, up to 16 presets for each cruise
Trace4 traces, record time over 3 minutes for each trace
Power off memorySupport
Action modePreset/Cruise/Trace/Auto Scan/Random Scan
3D PositioningSupport
PTZ Position DisplaySupport
Schedule TaskPreset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot
Preset FreezingN/A
Supplement Light
Light distance800m (2,625 f.t.)
Illuminator typeZoomed IR Laser illuminator,850nm, IEC Class 4  eye safety, diagonal 70°~2.1° continuous variable.
Smart IRYes
VideoTD-8843IM2N(PE/WP/37M/VL8x), x=0,1TD-8883IM2N(PE/WP/37M/VL80)
Mainstream2560x1440,1920×1080,1280×960,1280×720.
(VL80: 25/30fps, VL81: 25/30/50/60fps)
3840x2160,2560×1440,1920x1080,
1280×960,1280×720.
Sub stream50Hz/25fps:704 × 576, 640 × 480, 352 × 288.
60Hz/30fps:704 × 480, 640 × 480, 352 × 240
Third Stream50Hz/25fps :1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288.
60Hz/30fps :1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240
Video compressionMainstream:  Smart H.265+/H.265/H.264+/H.264
Sub stream:   Smart H.265+/H.265/H.264/MJPEG
Third stream: Smart H.265+/H.265/H.264/MJPEG
H.264 StandardH.264/AVC codec BP/MP/HP, Level 5.1
H.265 StandardH.265/HEVC codec MP, level 5.0
Video Bit Rate32 Kbps to 16Mbps
Audio
Audio compressionG.711 A/U
Audio Bit Rate64K bps
Network
ProtocolsHTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP,
RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, RTMP
User / HostUp to 16 users, 3 levels: Administrator, Advanced User and Normal User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based
network access control; IP address filtering
APIONVIF G/S/T/Q, support TVT SDK and third-party management platform
ClientTVT N9000 1.4.9&TVT NVMS 2.0 and later, the third-party client, free iOS and Android App
Web BrowserIE8-11 with plug-in; Edge, Chrome, Firefox with plugin free
Events
Basic eventMotion detection, video tampering alarm, alarm input, alarm output, exception
((Network disconnected, IP address conflict, SD full, SD error)
Smart eventLine crossing detection, region entrance detection, object removal detection, intrusion detection,
region exiting detection, audio exception detection
Smart trackingManual/Auto-tracking of human/no-motor vehicle/motorized vehicle(ver5.1.1)
Alarm LinkageAlarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording,
Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc.
Deep-learning Function
Face captureDetecting multiple faces in the same scene. Support detecting, capturing, grading, and output the best.
Fac comparison (Default off) Yes
Perimeter protectionLine crossing, Intrusion, Region entrance, Region exiting. Support alarm triggering by specified type.
Road-traffic and vehicle detection
Road trafficSupport vehicle detection and tracking(ver5.1.1)
System Integration
Alarm Interface7CH alarm input (Dry contact); 2CH alarm output
Audio Interface1CH audio input, 2 to 2.4v[p-p] 1KΩ ±10%; 1CH audio output (line out), impedance: 600Ω
Network Interface1 RJ45 10M/100M Adaptive Ethernet
SD Card SlotOne MicroSD slot and chamber, up to 256G
Built-in SpeakerN/A
RS485Half-duplex, Pelco-P/D
BNCN/A
Reset buttonYes
Electric Fan &HeaterBuilt-in electric fan for heat sink and glass Frost/Fog removal. Built-in electric heater for cold start.
Water removalElectric wipe for water-drops, dust, mud, ice, frost.  Time-schedule/manual.
DemistActive electric heating and air loop
General
LanguagesCzech; English, German; Hungarian; Italian; Japanese; Korean; Portuguese, Polish; Russian, Romanian,
Spanish; Spanish (Mexico); Simplified Chinese; Turkish; Traditional Chinese. Etc.
Power consumptionavg:36W, max 63.6Watt (PTZ working + IR ON + Heater on)
Power adaptorDC36V3000mA, CE/FC/UL, 0-40℃
AC24V5000mA, CE/FC/UL,-40℃,+70℃
90W PoE++ Midspan, FCC/UL/GB,-10,+50℃
Work condition-40°C~70℃(-48℉ ~ 158℉) IR off; -40℃~50℃, IR on; Cold start>=- 30℃(0.5~1.5 hour waiting); 90%RH
Storage condition-20℃~70℃; ≤ 80% RH
MaterialAluminum Alloy (ADC12)
Dim. &Weight¢278mm x H 435.5mm( ¢10.9’x 17.1’), Net weight approx. 8.8 Kg (19.4 lb.)
Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B).
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014).
KC (KN 32:2015, KN 35: 2015)
CertificationCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014).
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67(IEC 60529-2013), IK10 (IEC 62262:2002),6000V Lightning Protection, Surge Protection and Voltage Transient Protection
