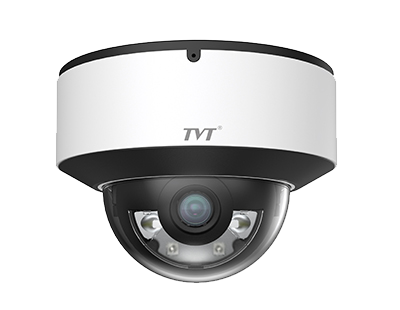

TD-9581S4-C
8MP Dual Illumination Water-proof Dome Network Camera
TD-9581S4-C(D/PE/AW2) Fixed Lens ：2.8mm ，3.6mm
Introduction
Specification

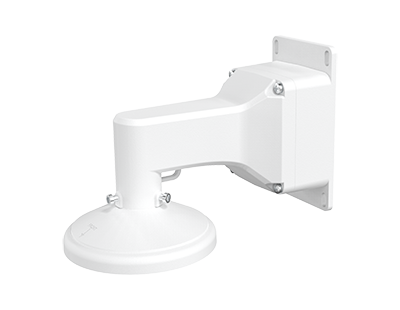

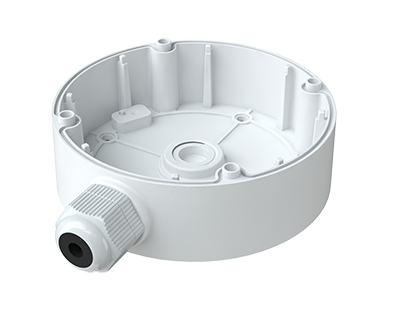

Accessories
Downloads
Features
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution:8MP ( 3840 × 2160)
Auto day/night switch
3D DNR, HWDR, HLC, BLC, Defog, etc.
ROI coding
Support smart supplement light
20~30m white light view distance; 20~30m IR view distance
DC12V/PoE power supply
IP 67 & Ik10 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support P2P function
Support SMD
Support line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detection
Dual-system backup
Dimension
| Model | TD-9581S4-C | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 "CMOS | |||
| Image Size | 3840×2160 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.02 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| Lens | 2.8mm@F1.6, Horizontal FoV: 101°;Vertical FoV:53°;Diagonal FoV:120° 3.6mm@F1.6, Horizontal FoV:87°;Vertical FoV:45°;Diagonal FoV:103.5° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~355°; Tilt: 0°~70°; Rotation: 0°~180° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 8MP(3840×2160),6MP(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 640× 360, 480× 240, CIF | |||
| Main Stream | 60Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~30fps) 50Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~25fps) | |||
| Sub Stream | 720P/D1/VGA/640×360/CIF/480× 240 (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Third Stream | 720P/D1/640×360/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~12Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| Audio Compression | G711A/U | |||
| ROI | 8ROI, Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | Google Chrome/Edge/Firefox/Safari | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card full, SD card error, IP address conflict, cable disconnection, video exception (scene change, video blur and abnormal color detection) | |||
| Smart Event | Line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, smart supplement light, corridor pattern, image distortion correction, ANR, cloud upgrade | |||
| PoE | Yes (IEEE802.3af) | |||
| Supplement Light Range | IR range: 20 ~ 30 m; white light range:20 ~ 30 m | |||
| Ingress Protection | IP67&IK10 | |||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 86m(284ft) | 34m(114ft) | 17m(56ft) | 8m(27ft) |
| 3.6mm | 104m(342ft) | 41m(136ft) | 20m(68ft) | 10m(34ft) |
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 7.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Ø 119 × 87.8 | |||
| Weight ( net ) | Approx. 0.64KG | |||
| Installation | Ceiling mounting; wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
