TD-6324E3(D/PE/AR2/4mm)

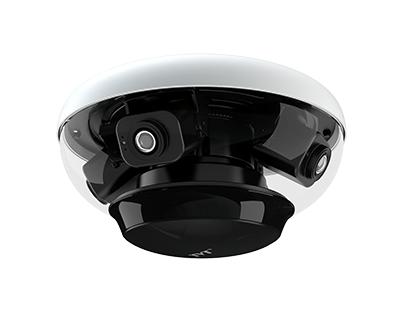

Outdoor 4*2MP Panoramic Quad-Directional Starlight IR Dome Network Camera
TD-6324E3(D/PE/AR2/4mm) Outdoor 4*2MP Quad-Directional Starlight IR Dome Network Camera, PoE+/
DC24V/AC24V, IP66/IK10
Introduction
Specification
Accessories
Downloads
Features
One dome camera contains 4 modules, each to different direction, equal to 4 sets of IP-Camera
One Network Cable with power and video (PoE+), One bracket, replace 4 IPCs, reducing TOC(total ownership cost)
Each module could circularly slide 0°~95°and vertically rotate 30°~70°.
Each module delivers max 2M (1920x1080P) full HD @25/30fps video stream.
True starlight technology provides vivid color at most scenarios.
360°(H)x90°(V) circular IR illumination, up to 25m in radius.
VCA: face, human/vehicle detection, intrusion, line crossing, etc.
Alarm driven by multi-rules: cross line, intrusion, device error, etc.
ONVIF specifications, interoperability between network video products regardless of manufacturer
Full Interfaces: RJ45, SD Card, Alarm, Audio, Reset
- 30°C~55°C (-22 °F ~ 131 °F), IP66 waterproof, IK10vandal resistant including lens bubble, 6KV TVS lightning.
Support PoE+ (802.3.at) and DC24V / AC24V

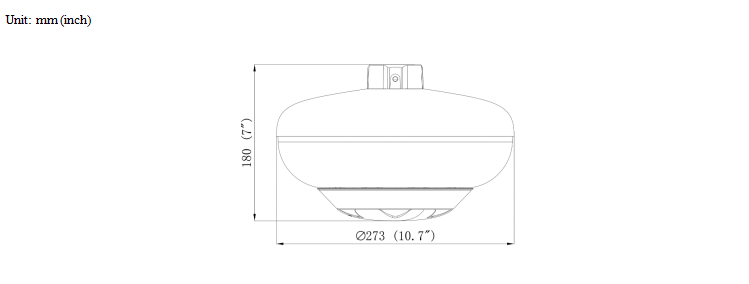

Dimension
| Camera Module | |||||
| Image sensor | 1/2.8″ progressive scan CMOSx 4CH | ||||
| Mini. Illumination | Color：0.005Lux @ (F1.6，AGC ON) ; B/W：0.001Lux @(F1.6，AGC ON); 0 Lux with IR | ||||
| Image setting | Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser | ||||
| Shutter Speed | 1/1 s – 1/100,000 s | ||||
| White Balance | Auto/Manual/Indoor/Outdoor | ||||
| Gain | Auto/Manual | ||||
| Day & Night | IR Cut filter | ||||
| Privacy Mask | 4CH x 1 Programmable privacy masks | ||||
| Image Enhancement | DWDR, 3D DNR, Digital zoom, Logo picture Overlay | ||||
| Angle Adjustment | Circularly slide 0°~95°,vertically rotate 40°~70°,4CH | ||||
| Lens | |||||
| EFL/F/no | 4.0mm lens × 4CH, F1.6 | ||||
| FOV | (Horizontal× Vertical) FOV:90°×50° | ||||
| Working distance | 0.2m ~ INF | ||||
| DORI distance | Focus length | Detect(25px/m) | Observe(63px/m) | Recognize(125px/m) | Identify(250px/m) |
| f=4.0mm | 55m(180 f.t.) | 21.8m (71.5 f.t.) | 11m (36 f.t.) | 5.5m(18 f.t.) | |
| IR | |||||
| IR Range | 25m (in radius), covering about 2000 square meters, 360°(H) ×90°(V) | ||||
| Smart IR | Yes | ||||
| Network | |||||
| Max Resolution | 3840×2160(1~30fps) | ||||
| Stream 0 | Panoramic view: 3840×2160, 2560×1440, 1920×1080(1~30fps) | ||||
| Stream 1 | CH1:1920×1080, 1280×720, 720×480(1~30fps), N/A this version | ||||
| Stream 2 | CH2:1920×1080, 1280×720, 720×480 (1~30fps), N/A this version | ||||
| Stream 3 | CH3:1920×1080, 1280×720, 720×480 (1~30fps), N/A this version | ||||
| Stream 4 | CH4:1920×1080, 1280×720, 720×480 (1~30fps), N/A this version | ||||
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG | ||||
| Audio compression | G.711 A/U | ||||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE | ||||
| Simultaneous live view | Up to 6 channels | ||||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering | ||||
| Smart Features | |||||
| Basic event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) | ||||
| Smart Detection | Up to 4 regions configurable: Human/vehicle detection and classification, Face detect and capture, Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection. | ||||
| ROI | Up to 4 regions configurable | ||||
| Alarm Linkage | Upload to FTP/Memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture | ||||
| System Integration | |||||
| Alarm Interface | 1CH alarm input; 1CH alarm output | ||||
| Audio Interface | 1CH audio input, 2 to 2.4v[p-p] 1kΩ±10%; 1CH audio output (line out), impedance: 600Ω | ||||
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet, Support PoE+(802.3.at) | ||||
| Storage | Built-in memory card slot, support microSD/SDHC/SDXC, up to 256G | ||||
| API | ONVIF, support TVT SDK and third-party management platform | ||||
| Client | TVT NVR N9000 1.4.5, TVT NVMS 2.0 | ||||
| Web Browser | IE8-11 | ||||
| General | |||||
| Power | AC24V, DC24V, PoE+ (802.3.at), (Max 25W, include IR on) | ||||
| Working condition | -30°C ~ 55°C (-22 °F ~ 131 °F), 90% RH less (non-condensing), Cold start at - 20°C | ||||
| Storage condition | -40°C ~ 70°C ; ≤ 95% RH | ||||
| Protection | IP 66, IK09, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | ||||
| Material | Main body Aluminum Alloy; Buble:Polycarbonate | ||||
| Dimensions | ￠273mm × H 180mm( ￠10.7″ × 7″) | ||||
| Weight | Net weight Approx. 3.26 Kg (7.18 l.b.) | ||||
| Certification | IK10(including lens bubble), IP66, ROHS, CE, FC | ||||
