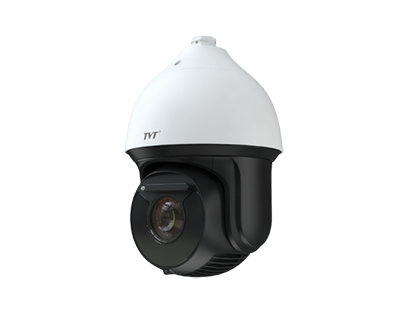

TD-8883IM2N(PE/50M/WP/AR50)
50X IR 500m Network PTZ Camera
TD-8883IM2N(PE/WP/50M/AR50) 8MP 50X 500m IR PoE++ AI 8-In Turret PTZ Camera, with electric wiper, including power adaptor and wall mounting bracket
Introduction
Specification
Accessories
Downloads
Features
Top-notch image quality and low light performance
Sony 4th Gen Starvis sensor and super powerful 50x zoom lens can output the top-notch picture quality and vivid colorful image under low-night conditions.
Diaphragm P-IRIS
They both adopt a 10 slices P-IRIS diaphragm which could accurately control the amount and angle of light into the sensor, greatly improve image contrast and quality.
Thin film Stacked IR contributes 3x brightness.
Comparing to Gen1, the new PTZ cameras mix 5W stack thin film IR LED chip and 6W high-power VCSEL LED chip, which could give up 3x illuminator energy. Thus they could reach up to 500m in the pitch-black environment.
Multiple VCA functions
The built-in 1.5Tops AI engine could support multiple AI rules running at the same time: human/vehicle/no-motor classification, perimeter protection, face detection and capture, CPL, human/vehicles smart-tracking, etc.
Large on-board data storage
The on-board 4GB memory could be used to load, store pictures ID (Cargo S/N, facial ID, CPL ID, etc.).
ONVIF protocol, API
This PTZ family conforms to the ONVIF, ensuring interoperability between surveillance video products regardless of manufacturers.
Strong protection for harsh weather
Metal housing, IP67 water immerse and IK10 vandalism resistant. Built-in high power electric heater could support work under northern cold area. Built-in electric water-wiper supports working in tropical rainy area. These products were suited for long-time working in harsh weather, such as windstorm, sea salty corrosion, desert and high-land strong sun radiation.
Rich accessories
Various mounting brackets including junction box and
hi-power PoE Midspan support flexible in-field wiring and mounting.
Dimension
| Camera Module | TD-8843IM2N(PE/WP/50M/AR50) | TD-8883IM2N(PE/WP/50M/AR50) | |||
| Image sensor | 1/1.8" progressive CMOS (SONY IMX664) | 1/1.8" progressive CMOS (SONY IMX678) | |||
| Max resolution | 2560×1440 | 3840×2160 | |||
| Mini. Illumination | Color：0.00065 Lux @ (F1.4, AGC ON) B/W：0.00013 Lux @ (F1.4, AGC ON) 0 Lux with IR | Color：0.0013 Lux @ (F1.4, AGC ON) B/W：0.00026 Lux @ (F1.4, AGC ON) 0 Lux with IR | |||
| Image setting | Saturation, Brightness, Contrast, Sharpness, AGC, AWB, etc. adjusted by client | ||||
| Shutter Speed | 50Hz:1/25s-1/25,000s, 60Hz:1/30s-1/30,000s | ||||
| White Balance | Auto/Manual/Indoor/Outdoor | ||||
| Gain control | Auto/Manual | ||||
| SNR | ≥52dB | ||||
| Day & Night control | Auto Mode, Manual Mode, Scheduled-switch, Timer. | ||||
| Iris control | Auto/Manual | ||||
| Noise Reduction | 2D/3D DNR, Auto/Manual | ||||
| AE Enhancement | BLC, HLC, HDR | ||||
| Digital Zoom | 16X | ||||
| Electronical Stabilizer | N/A | ||||
| Optical Defog | N/A | ||||
| Privacy Mask | 4 areas per scene(ver5.1.) | ||||
| Picture overlay | Logo picture could be overlaid on video, 16x16,24x24,32x32,48x48,64x64,96x96,128x128pixels | ||||
| OSD overlay | Max 15 characters/line, 8 lines, white or red font color, text such as week, date, time | ||||
| Lens | TD-8843IM2N(PE/WP/50M/AR50) | TD-8883IM2N(PE/WP/50M/AR50) | |||
| Focus length | f= 5.3 ~ 265mm lens,50x optical zoom±5% | ||||
| Zoom Speed | Approx. 7s (optical zoom, wide-tele) ±5% | ||||
| Field of View | Horizontal:65.3° to 1.7°; Vertical: 38.6° to 1°; Diagonal: 72.9° to 2°(wide-tele) ±5% | ||||
| Image distance | wide: 0.1m ~ INF; tele: 2m ~ INF | ||||
| Aperture type | F1.4~F4.2(wide-tele), P-IRIS, 10 slices, IRIS Diaphragm, support manual /auto | ||||
| Optical filter type | Removable IRCUT filter (Reflection type) | ||||
| DORI | Focus length | f=5.3mm | f=265mm | f=5.3mm | f=265mm |
| Detect | 78.6m (258 f.t.) | 3,270m (10,728 f.t.) | 114m (374 f.t.) | 4,742m (15,558 f.t.) | |
| Observe | 31.2m (102 f.t.) | 1,298m (4,259 f.t.) | 45.2m(148 f.t.) | 1,706m (5,597 f.t.) | |
| Recognize | 15.8 m (52 f.t.) | 654m (2,146 f.t.) | 22.8m(71 f.t.) | 948.4m(3,112 f.t.) | |
| Identify | 7.9m (26 f.t.) | 327m (1,073 f.t.) | 11.4m(37 f.t.) | 474.2m(1,556 f.t.) | |
| PTZ | |||||
| Pan Range | 360°endless | ||||
| Pan speed | Configurable, from 0.1~180°/s; Preset speed: 180°/s | ||||
| Tilt Range | Mechanical from -20° to 180°, auto flip at 90° | ||||
| Tilt Speed | Configurable, from 0.1°~150°/s, Preset speed: 150°/s | ||||
| Proportional Zoom | Yes | ||||
| Preset | 360 | ||||
| Cruise | 8 cruises, up to 16 presets for each cruise | ||||
| Trace | 4 traces, record time over 3 minutes for each trace | ||||
| Power off memory | Support | ||||
| Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan | ||||
| 3D Positioning | Support | ||||
| PTZ Position Display | Support | ||||
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot | ||||
| Preset Freezing | N/A | ||||
| Supplement Light | |||||
| IR distance | 500m (1,640 f.t.) | ||||
| Illuminator type | 12pcs of IR LED and IR VCSEL into 6 groups(65°/35°/18°/9°/5°/3°) | ||||
| Smart IR | Yes. Support facial priority and ANPR priority | ||||
| Video | TD-8843IM2N(PE/WP/50M/AR50) | TD-8883IM2N(PE/WP/50M/AR50) | |||
| Mainstream | 50Hz/25fps: 2560×1440, 1920×1080, 1280×960, 280×720 60Hz/30fps: 2560×1440, 1920×1080, 1280×960, 280×720 | 50Hz/25fps:3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720 60Hz/30fps: 3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720 | |||
| Sub stream | 50Hz/25fps:704 × 576, 640 × 480, 352 × 288; 60Hz/30fps:704× 480, 640 × 480, 352 × 240 | ||||
| Third Stream | 50Hz/25fps :1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288 60Hz/30fps :1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240 | ||||
| Video compression | smart H.265+/H.265/H.264+/H.264/MJPEG | ||||
| H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | ||||
| H.265 Standard | H.265/HEVC codec MP, level 5.0 | ||||
| Video Bit Rate | 32 Kbps to 16Mbps | ||||
| Audio | |||||
| Audio compression | G.711 A/U | ||||
| Audio Bit Rate | 64K bps | ||||
| Network | |||||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, RTMP | ||||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering | ||||
| API | ONVIF G/S/Q/T, support TVT SDK and third-party management platform | ||||
| Client | TVT N9000 1.4.9&TVT NVMS 2.0 and later, the third-party client, free iOS and Android App | ||||
| Web Browser | IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free | ||||
| Event | |||||
| Basic event | Motion detection, video tampering alarm, alarm input, alarm output, exception (Network disconnected, IP address conflict, SD full, SD error) | ||||
| Smart event | Line crossing detection, region entrance detection, object removal detection, intrusion detection, region exiting detection, audio exception detection. Filtering leaf, trees, animals, flags. | ||||
| Smart tracking | Manual/Auto-tracking of human/no-motor vehicle/motorized vehicle(ver5.1.1) | ||||
| Alarm Linkage | Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. | ||||
| Deep-learning Function | |||||
| Face capture | Detecting multiple faces in the same scene. Support detecting, capturing, grading, and output the best. | ||||
| Fac comparison | (Default off) Yes | ||||
| Perimeter protection | Line crossing, Intrusion, Region entrance, Region exiting (people/vehicle classification) | ||||
| Road-traffic and vehicle detection | |||||
| Road traffic | Support vehicle detection and tracking(ver5.1.1) | ||||
| System Integration | |||||
| Alarm Interface | 7CH alarm input (Dry contact); 2CH alarm output | ||||
| Audio Interface | 1CH audio input, 2 to 2.4v[p-p] 1KΩ ±10%; 1CH audio output (line out), impedance: 600Ω | ||||
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet | ||||
| SD Card Slot | One MicroSD slot and chamber, up to 256G | ||||
| Built-in Speaker | N/A | ||||
| RS485 | Half-duplex, Pelco-P/D | ||||
| BNC | N/A | ||||
| Reset button | Yes | ||||
| Electric Fan &Heater | Built-in electric fan for heat sink and glass Frost/Fog removal. Built-in electric heater for cold start. | ||||
| Water removal | Electric wipe for water-drops, dust, mud, ice, frost. auto/manual. | ||||
| Demist | Active electric heating and air loop | ||||
| General | |||||
| Languages | Czech; English, German; Hungarian; Italian; Japanese; Korean; Portuguese, Polish; Russian, Romanian, Spanish; Spanish (Mexico); Simplified Chinese; Turkish; Traditional Chinese. | ||||
| Power consumption | Avg :37W, Max. 51 W: IR max 28 W, Heater max 10W | ||||
| Power adaptor | DC36V3000mA, CE/FC/UL, 0-40℃ AC24V5000mA, CE/FC/UL,-40℃,+70℃ 90W PoE++ Midspan, FCC/UL/GB,-10,+50℃ | ||||
| Work condition | -40°C~70°C (-48°F ~ 158°F) IR off; -40°C~50°C, IR on; Cold start>=- 40°C (0.5~1.5 hour waiting); 90%RH | ||||
| Storage condition | -30°C ~60°C; ≤ 95% RH | ||||
| Material | Aluminum Alloy (ADC12) | ||||
| Dim. &Weight | ￠278mm x H443.5mm( ￠10.9”x 17.1”), Net weight approx. 9.4 Kg (20.7 lb.) | ||||
| Approval | |||||
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); KC (KN 32:2015, KN 35: 2015); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014); | ||||
| Certification | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) | ||||
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67(IEC 60529-2013), IK10 (IEC 62262:2002),6000V Lightning Protection, Surge Protection and Voltage Transient Protection | ||||
