TE-VD1108S1-CEPW
Video Intercom Door Station
Introduction
Specification
Downloads
Features
2MP (1920×1080) real-time H.265 coding
Auto day-night switch
Support 3D DNR, HWDR, BLC, HLC, etc.
Built-in card reader for M1/EM card
Support door opening by indoor station or by mobile APP or by swiping card
Support 2.4G Wi-Fi
Intelligent analytics: video exception detection, person detection, face detection, face capture
Support noise suppression and echo cancellation
Customized nametag buttons calling design for easier calls
Support four button module options: 1/2/4/8 buttons
Backlight compensation behind the nametag buttons
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material

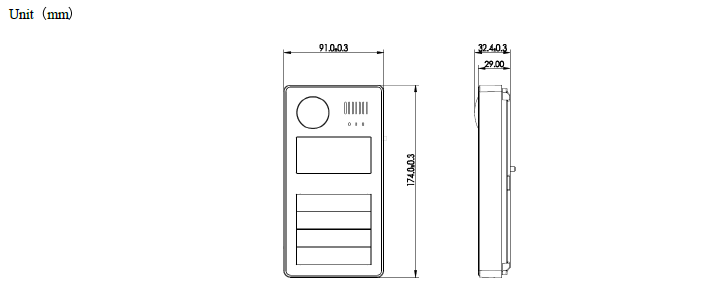

Dimension
Camera | |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Image Size | 1920×1080 |
Electronic Shutter | Auto/Manual; Manual:1s ~ 1/100000s |
IRIS Type | Fixed IRIS |
MIN. Illumination | Color:0.0085lux@F1.2,AGC ON; B&W:0 lux with IR |
Lens | 2.12mm@F2.0, Vertical FOV: approx.80.5°,Horizontal FOV: approx. 138°, Diagonal FOV: approx. 161° |
WDR | 120dB |
S/N Ratio | ≧50dB |
BLC | Yes |
HLC | Yes |
Defog | No |
DNR | 2D/3D NR |
Image | |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG |
H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
Bit rate Type | VBR/CBR |
Bit Rate | 64Kbps ~ 6Mbps |
Resolution | 1080P(1920×1080), 720P(1280×720), D1, CIF, 480×240 |
Main Stream | 1920×1080/1280×720(60Hz: 1~30fps; 50Hz: 1~25fps ) |
Sub Stream | 720P/D1/CIF(60Hz: 1~30fps; 50Hz: 1~25fps ) |
Third Stream | D1/CIF/480×240(60Hz: 1~30fps; 50Hz: 1~25fps ) |
Image Setting | Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, etc., adjustable through client or web browser |
Audio Compression | G711A/U |
ROI | 8 ROI, each ROI to be configured separately |
Card | |
Card Type | Mifare card /Desfire card/FM1208 Card/Gicard /EM Card |
Card Reading Protocol | ISO14443A/B protocol,EM41XX |
Card Reading Frequency | 13.56MHz & 125KHz |
Card Reading Duration | <1s |
Card Reading Distance | 0~3cm |
Card Capacity | 15000 |
Button | |
Button | Up to 8 buttons, 1, 2, 4 or 8 buttons configurable |
Backlight | Yes |
Interfaces | |
Network | RJ45(10/100 Base-T) |
Video Output | No |
Audio | Built-in MIC×1, built-in speaker×1; support noise suppression and echo cancellation |
Storage | 1CH built-in micro SD card slot, up to 256GB |
Reset | Yes |
RS485 | Yes (for card reader or access control system access) |
Wiegand Interface | Yes (Wiegand input or output configurable) |
Alarm input/output | No |
Door Lock Output | 2CH |
Door Contact Input | 2CH |
Exit Button | 2CH |
Anti-Tamper Interface | 1CH |
Swiping Card Area | Support IC card/EM card |
Indicators | Yes |
Wi-Fi | Support 2.4G Wi-Fi function |
Access Control | |
People Info Adding | Adding face pictures and relevant information through WEB or NVMS Up to 3,000 |
People Management | Support adding, modifying, deleting and viewing people information |
Personal Properties | ID number, list type(group), name, gender, age, phone number, card ID, password, door opening mode, note, room number, floor, etc. |
Door Opening Modes | Swiping card /indoor station/APP/NVMS |
Schedule | Yes |
Sub Door Station | Yes |
Capacity | 50000 event items can be recorded |
Function | |
Remote Monitoring | Web client/indoor station/CMS remote control |
Online Connection | Supports simultaneous monitoring for up to 6 users Supports multi-stream real time transmission |
Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, SNMP, FTP, RTMP, 802.1x, UPnP, HTTPS, HTTP POST, Qos, SIP, P2P |
Interface Protocol | ONVIF |
Storage | Network remote storage,SD card storage |
Smart Alarm | Motion detection, SD card error, SD card full, video exception |
General Function | Watermark, IP address filtering, heartbeat, illegal login, dual system backup |
PoE | Yes (802.3af) |
P2P | Yes, turn on by default |
IR Distance | 0.3~5m |
Protection Grade | IP65, IK08 |
Network Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, HTTPS, 802.1x |
Intelligent Analytics | |
Intelligent Analytics | Person detection, face detection, face capture |
Face Detection | Pupil distance of a facial image over 20 pixel can be detected |
Face Capture | Outputting the optimal face image by precise detecting, tracing, capturing, scoring and screening the moving faces |
Original Image Capturing | Supports original image capturing and self-defined overlaid information (like device ID, time, etc.) |
Face Comparison | No |
Others | |
Power | DC12V/PoE |
Power Consumption | < 10W |
Environmental Protection | RoHS 2.0,REACH,WEEE, directive94/62/EC |
Certificate | CE, FCC |
Working Environment | -30℃~60℃, Humidity: less than 95% (non-condensing) |
Dimensions(mm) | Approx. 91mm × 174mm ×32.4mm |
Weight (net) | Approx. 0.407 kg |
Installation | Wall Mounting |
