TD-9451S4-C
5MP Dual Illumination Wi-Fi Network Camera
TD-9451S4-C(D/WF/AW2) Fixed Lens :2.8mm ,3.6mm
Introduction
Specification
Accessories
Downloads
Features
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution: 5MP ( 2880 × 1620)
Auto day/night switch
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
Support smart supplement light
20~30m white light view distance; 20~30m IR view distance
DC12V power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support P2P function
Support Wi-Fi
Support SMD
Intelligent analytics

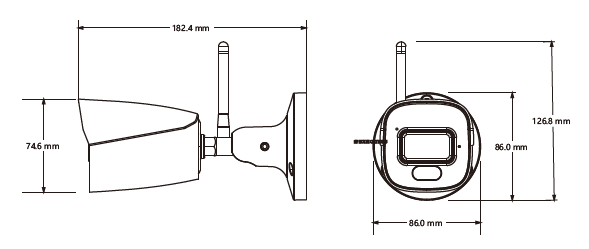

Dimension
Model | TD-9451S4-C | |||
Camera | ||||
Image Sensor | 1 / 2.7 "CMOS | |||
Image Size | 2880×1620 | |||
Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
Iris Type | Fixed Iris | |||
Min. Illumination | 0.007 lux @F1.6, AGC ON; 0 lux with IR | |||
Lens | 2.8mm@F1.6, Horizontal FoV:110°;Vertical FoV:61°; Diagonal FoV:131° 3.6mm@F1.6, Horizontal FoV:89°;Vertical FoV:48°; Diagonal FoV:103° | |||
Focus | Fixed | |||
Lens Mount | M12 | |||
Day&Night | ICR | |||
Wide Dynamic Range | 120dB | |||
BLC | Yes | |||
HLC | Yes | |||
Digital NR | Yes | |||
S/N Ratio | ≥50dB | |||
Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
Image | ||||
Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
Resolution | 5MP(2880×1620), 4MP(2688×1520),2K(2560×1440), 3MP(2304×1296), 1080P (1920×1080), 720P(1280×720), D1, VGA(640×480), 640×360, 480×240, CIF | |||
Main Stream | 5MP(1~20fps)/4MP/2K/3MP/1080P(60Hz:1~30fps; 50Hz:1~25fps) | |||
Sub Stream | 720P/D1/VGA/640×360/CIF (60Hz:1~30fps; 50Hz:1~25fps) | |||
Third Stream | D1/VGA/640×360/480× 240/CIF (60Hz:1~30fps; 50Hz:1~25fps) | |||
Bit Rate | 64 Kbps ~ 8 Mbps | |||
Bit Rate Type | VBR / CBR | |||
Audio Compression | G711A/U | |||
Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
ROI | Each ROI to be configured separately | |||
Functions | ||||
Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
Web Browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |||
Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS | |||
Interface Protocol | ONVIF Profile S/G/M/T | |||
Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API service | |||
Storage | Network remote storage; micro SD card storage | |||
Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, white light alarm triggered by smart events | |||
Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification), abandoned/missing object detection | |||
General Function | Watermark, video mask, heartbeat, corridor pattern, ANR, cloud upgrade, disarming, smart supplement light, dual system backup, Wi-Fi configuration by scanning QR code | |||
PoE | No | |||
Supplement Light Range | IR range: 20 ~ 30 m; white light range:20 ~ 30 m | |||
Ingress Protection | IP67 | |||
DORI Distance | ||||
Lens | Detect | Observe | Recognize | Identify |
2.8mm | 55m(180ft) | 22m(72ft) | 11m(39ft) | 5.5m(18ft) |
3.6mm | 73m(239ft) | 29m(95ft) | 14.5m(48ft) | 7m(24ft) |
Interfaces | ||||
Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
Indicator | Yes | |||
Audio | 1CH audio input; 1CH built-in MIC | |||
Storage | Built-in micro SD card slot, up to 256GB | |||
Reset | Yes | |||
Wi-Fi | ||||
Wireless Standards | IEEE802.11a/b/g/n, IEEE802.11ac, IEEE802.11ax, | |||
Frequency Range | 2.4GHz & 5GHz | |||
Channel Bandwidth | 20MHz | |||
Security | WEP, WPA-PSK/WPA2-PSK, WPA3 | |||
Wireless Range | 200m (no obstacles) | |||
Transfer Rates | 11b: 11Mbps; 11g:54Mbps; 11n: up to 150Mbps | |||
Others | ||||
Power Supply | DC12V | |||
Power Consumption | < 6.02W | |||
Operating Environment | - 30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing) | |||
Storage Environment | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
Dimensions ( mm ) | 182.4× 86× 126.8 | |||
Weight ( net ) | Approx. 0.52KG | |||
Installation | Ceiling mounting; Wall mounting | |||
Certificate | CE, FCC | |||
Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
