TD-9441S4L-KT

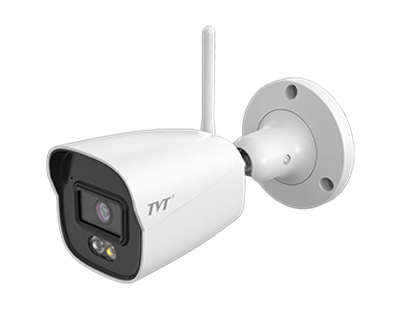

WIFI Network Camera
TD-9421E3B-A(D/PE/AR2) Fixed lens : 2.8 mm , 3.6 mm
Introduction
Specification
Accessories
Downloads
Features
Max. resolution: 4MP (2560×1440)
20~30m IR night view distance; 10~20m white light view distance
Support 3D DNR, WDR, BLC, HLC, etc.
IP67
Auto Wi-Fi connection and easy installation
Support region intrusion, linc croosing, etc.
Applicable to WIFI NVR kit

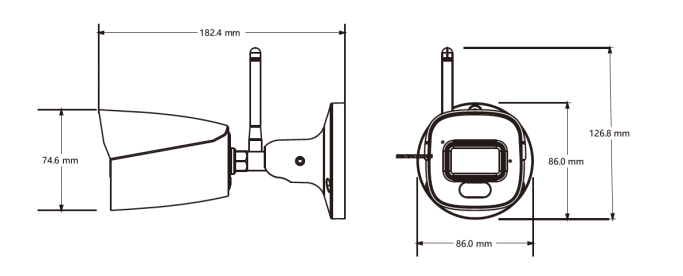

Dimension
| Camera | Image Sensor | 1/3"CMOS |
| Max. Resolution | 2560×1440 | |
| Electronic Shutter | 1/3s ~ 1/100000s | |
| Iris Type | Fixed iris | |
| Min. Illumination | 0.07lux @F2.0, AGC ON; 0 lux with IR/LED ON | |
| Lens | 2.8mm@F2.0，Horizontal FoV: 95°; Vertical FoV: 53°; Diagonal FoV: 111° 3.6mm@F2.0，Horizontal FoV: 73°; Vertical FoV: 40°; Diagonal FoV: 88° | |
| Lens Mount | M12 | |
| WDR | Digital WDR | |
| BLC | Yes | |
| HLC | Yes | |
| S/N Ratio | ≥50dB | |
| Digital NR | Yes | |
| Day & Night | ICR | |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° | |
| Image | Video Compression | Main/sub stream: H.265+/H.265/H.264+/H.264 |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |
| Audio Compression | G711A/U | |
| Resolution | 4MP(2560×1440), 3MP(2304×1296), 1080P (1920×1080)，720P (1280×720), D1, 640×360, VGA, CIF, 480× 240 | |
| Main Stream | 4MP/3MP/1080P/720P(60Hz:1~24fps; 50Hz: 1~25fps) | |
| Sub Stream | D1/640×360/VGA/CIF/480×240(60Hz:1~24fps; 50Hz: 1~25fps) | |
| Image Settings | Brightness, Hue, Saturation, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through NVR | |
| Interfaces | Audio | 1CH built-in MIC |
| WIFI Match Button | Yes | |
| Wireless | Wi-Fi | Yes, IEEE802.11b/g/n |
| Function | Supplement Light Range | Warm white light range:10~20m; IR range: 20~30m |
| Ingress Protection | IP67 | |
| Smart Events | (Human/motor vehicle/non-motor vehicle) line crossing detection/ region intrusion detection | |
| Motion Detection | Sensitivity and area configurable; support smart motion detection (human/vehicle classification) | |
| Privacy Mask | Yes, 4 areas configurable | |
| Others | Power | DC12V (power adapter included) |
| Power Consumption | < 5W | |
| Dimensions (mm) | 182.4× 86× 126.8 | |
| Wight (net) | Approx: 0.463KG | |
| Material | Main body & bracket: Metal | |
| Operating Environment | -30 °C ~ 60°C; Humidity < 95% (non-condensing) | |
| Installation | Ceiling mounting; wall mounting |
