TD-9530C4L

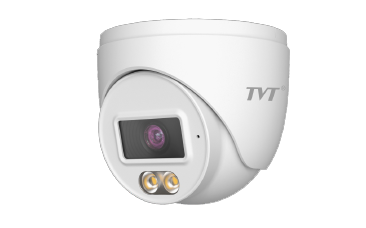

3MP Full-Color Turret Network Camera
TD-9530C4L(PE/WR1) Fixed Lens ：2.8mm ，3.6mm
Introduction
Specification
Accessories
Downloads
Features
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution: 3MP ( 2304 × 1296)
24/7 full color imaging
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
10~20m white light view distance
DC12V/PoE power supply
IP 67 ingress protection
Support dual streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support line crossing detection & region intrusion detection
Support SMD
Support P2P
Dimension
| Model | TD-9530C4L | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 "CMOS | |||
| Image Size | 2304×1296 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0005 lux @F1.0, AGC ON; 0 lux (Illumination on) | |||
| Lens | 2.8mm@F1.0, Horizontal FoV: 102°;Vertical FoV:54°;Diagonal FoV:122° 3.6mm@F1.0, Horizontal FoV:81°;Vertical FoV:44°;Diagonal FoV:95° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 42m(139ft) | 17m(56ft) | 8m(28ft) | 4m(14ft) |
| 3.6mm | 53m(175ft) | 21m(70ft) | 11m(35ft) | 5m(18ft) |
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), D1, 640×360, VGA(640×480), 480×240, CIF | |||
| Main Stream | 3MP/1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | D1/640×360/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 32 Kbps ~ 4 Mbps | |||
| Audio Compression | G711A/U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, Flip horizontally/vertically, etc. adjustable through client software or web browser | |||
| ROI | Support 4 regions of interest, each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 (10/100 Base-T) | |||
| Video Output | No | |||
| Audio | 1CH built-in MIC | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, DDNS, 802.1x, HTTP, QoS, P2P | |||
| Interface Protocol | ONVIF | |||
| API&SDK | Yes | |||
| Storage | Network remote storage | |||
| Motion Detection | Support smart motion detection; filtering motion alarm triggered by other target types except people | |||
| Smart Alarm | IP conflict, network disconnected, white light alarm triggered by events | |||
| Smart Event | (People) Region intrusion/line crossing detection | |||
| General Function | Watermark, video mask, heartbeat, disarming | |||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and token authentication for HTTP/RTSP | |||
| PoE | Yes, IEEE802.3af | |||
| White Light Range | 10 ~ 20 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | DC12V: < 4W; PoE: < 5.4W | |||
| Operating Environment | - 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | - 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 94.8 × 82.8 | |||
| Weight ( net ) | Approx. 0.277KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
