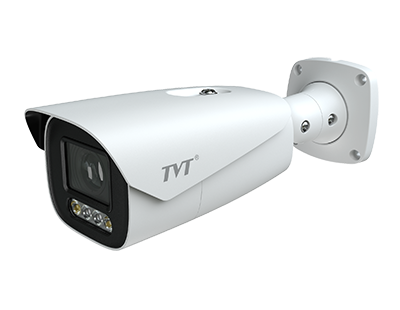

TD-9463E4B
6MP Dual-illumination Bullet Network Camera
TD-9463E4B(D/AZ/PE/AW5) Motorized Lens : 2.7~13. 5mm
Introduction
Specification
Accessories
Downloads
Features
H.265+/H.265/H.264 +/H.264/MJPEG coding
Max. resolution: 3296 × 1856
30~ 40m white light view distance; 50~70 IR view distance
Support smart supplement light
Support AI ISP
ICR auto switch, true day / night vision
3D DNR, HWDR, HLC, BLC, Smart IR and ROI coding
Built-in micro SD card slot; up to 512G
DC12V/PoE power supply
IP 67& IK10 ingress protection
Support four streams
Support NAT function
Support SMD
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Multiple smart events can be enabled at the same time
Dual system backup

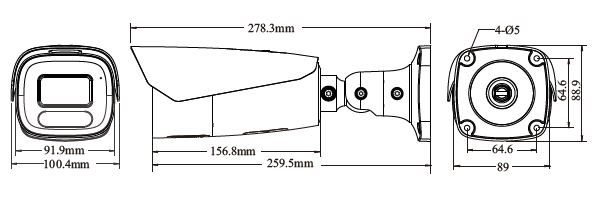

Dimension
| Model | TD-9463E4B | |||
| Camera | ||||
| Image Sensor | 1 / 2.4 "CMOS | |||
| Max. Resolution | 3296 × 1856 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | |||
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| S/N Ratio | ≥50dB | |||
| Lens | 2.7~13.5mm@F1.6, H.FoV: 109°~37°; V.FoV: 57°~21°; D.FoV: 130°~42° | |||
| Focus | Motorized | |||
| Lens Mount | φ16.8 | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°;Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main/Fourth stream: H.265+/H.265/H.264+/H.264 Sub/Third stream: H.265+/H.265/H.264+/H.264/ MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 6MP (3296×1856), 3K (3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240 | |||
| Main Stream | 6MP/3K/4MP/2K/1080P (60Hz : 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | 1080P(60Hz:1~15fps; 50Hz: 1~12fps)/ 720P/D1/VGA/640×360/CIF/480×240(60Hz:1~30fps; 50Hz:1~25fps) | |||
| Third Stream | 720P/D1/VGA/640×360/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Fourth Stream | 1080P/720P/D1/VGA/640×360/CIF/480×240(60Hz:1~30fps; 50Hz:1~25fps) | |||
| Bit Rate | 32 Kbps ~ 10 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser | |||
| ROI | 8 ROI, each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 (10/100 Base-T) | |||
| Video Output | CVBS (BNC X1) | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in microphone | |||
| Storage | Built-in micro SD card slot; up to 512G | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Intelligent Video Detection (IVD) | Line crossing/ region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection, people gathering detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.7~13.5mm(W) | 66m(218ft) | 27m(87ft) | 13m(44ft) | 7m(22ft) |
| 2.7~13.5mm(T) | 194m(636ft) | 78m(255ft) | 39m(127ft) | 19m(64ft) |
| Functions | ||||
| Remote Monitoring | Web Client/NVR/NVMS/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | TCP, UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, NAT, QoS, ICMP, IGMP | |||
| Interface Protocol | ONVIF Profile S/G/M/T | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm | |||
| GeneralFunction | Watermark, video mask, heartbeat, smart IR, smart supplement light, corridor pattern, image distortion correction, ANR, cloud upgrade, disarming | |||
| Security | Firmware encryption, HTTPS encryption, configuration encryption, video encryption, illegal login lock,IP address filtering, 802.1x, log out after timeout basic and digest authentication for HTTP/RTSP/API service, TLS1.1/1.2/1.3 | |||
| PoE | Yes , IEEE802.3af, class3 | |||
| Supplement Light Range | IR range: 50 ~ 70 m; white light range: 30 ~ 40 m | |||
| Ingress Protection | IP67 & IK10 | |||
| Anti-Corrosion Protection | NEMA 4X | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | DC12V: < 11.3W; PoE: <11.7W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 278.3 ×100.4 ×88.9 | |||
| Weight ( net ) | Approx. 1.21KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU), and REACH(EC1907/2006) | |||
