TD-3332H8-B2
32 CH NVR
TD-3332H8-B2 series supports 32 CH 16MP /12MP /9MP/8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P /720P high definition IP video input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
TD-3332H8-B2 series supports 32 CH IP input, simultaneous 16 CH playback, and 4K high definition display. The series of products can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Introduction
Specification
Downloads
Features
Support 32CH 16MP /12MP /9MP/8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P / 720P IP input
H.265S/H.265+/H.265/H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
Playback : 16 CH simultaneous playback
Search : time slice, time, event, tag, smart and target database search
Support face detection and comparison
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
Support POS information overlay on live view and playback
Support RAID 0, 1, 5, 6, 10
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support PTZ preset and auto cruise
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Dimension

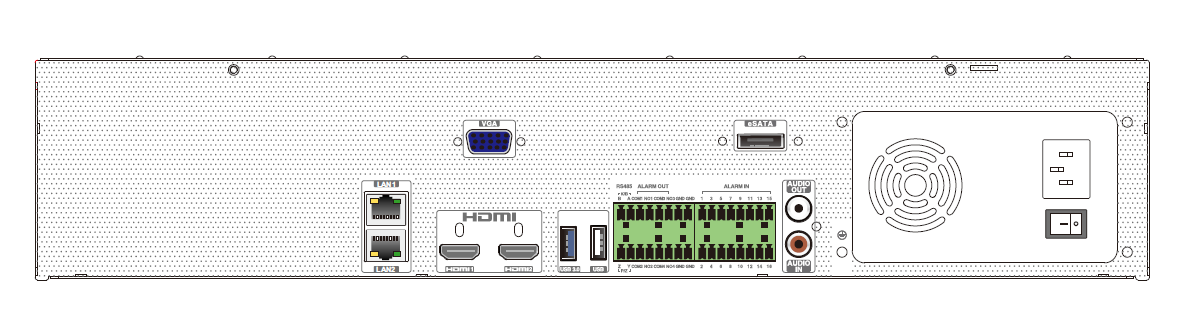

Rear Panel
| Model | TD-3332H8-B2 | |
| System | OS | Embedded Linux |
| Video | Compression | H.265S/H.265+/H.265/H.264 |
| IP Video Input | 32CH IPC input | |
| Resolution | 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P 720P/960H/D1/CIF | |
| Network Bandwidth | 320Mbps/320Mbps(incoming/outgoing) *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. | |
| Output | HDMITM1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMITM2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMITM1 output the same video source | |
| Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36 (live view) AUX output: 1/4/6/8/9 (live view) Max. 32+9CH local live view | |
| Audio | Network Input | 32 CH IPC audio input |
| Local Input | RCA × 1 (for two-way talk) | |
| Local Output | RCA × 1 | |
| Compression | G.711(U/A) | |
| Record | Resolution | 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/D1/CIF |
| Frame Rate | NTSC: 30fps; PAL: 25fps | |
| Cloud Storage | Number of Channels | 16CH |
| Record | Resolution: 1080P/720P | |
| Frame Rate: 15fps | ||
| Playback | Simultaneous Playback | Max 16CH |
| Search | Time slice / time / event / tag / smart search | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/ Playback | Non-AI Mode: 1×16MP@30fps/4×8MP@30fps/9×3MP@30fps/16×2MP@30fps AI Mode:1×16MP@30fps/4×6MP@30fps/9×3MP@30fps /16×720P@30fps |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. |
| Input | 16 CH local alarm input | |
| Output | 4 CH | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Face | Face Detection Performance (AI by IPC) | 32CH |
| Face Detection Performance (AI by NVR) | PicSearch disabled: 2 CH(2MP) or 1CH (4MP) PicSearch enabled: 1CH(2MP) or 1CH (4MP) | |
| Face Match Performance | PicSearch disabled: 6 CH PicSearch enabled: 3CH | |
| Comparison Capability | 18 pictures / second | |
| Face Picture Database | 32 libraries 10000 Face Pictures | |
| Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
| Face Picture Comparison | Support successful face recognition alarm and stranger match alarm | |
| Statistical Graph of Information | Bar graph | |
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 32 CH |
| Human/Vehicle Classification (AI by NVR) | PicSearch disabled: 2 CH(2MP) or 1CH (4MP) PicSearch enabled: 1CH(2MP) or 1CH (4MP) | |
| Video Metadata | Human/Vehicle Attribute Analysis | Yes (AI by IPC) |
| Other Functions | Fisheye | Supports fisheye dewarping via NVR/Web Client/mobile APP |
| Plate Recognition(AI by IPC) | Yes | |
| Network | Interface | RJ45 10 / 100 / 1000 Mbps × 2 |
| Protocol | TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, FTP, 802.1X, RTP, RTCP, RTSP, WebSocket, SNMP, IGMP, ONVIF | |
| Client Connection | Max. 128 users access | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA × 8, max 10T per HDD; e-SATA × 1 |
| RAID Type | RAID0, 1, 5, 6, 10 | |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | USB | USB 2.0 × 2, USB 3.0 × 1 |
| Remote Controller | Optional | |
| RS 485 | Yes (full-duplex), connect to PTZ or keyboard | |
| Others | Power Supply | ATX 200W |
| Consumption | ≤ 30W ( without HDD ) | |
| Dimensions | 445mm×436mm×90mm | |
| Working Environment | -10℃ 〜 50 ℃，Humidity: 10% 〜 90% | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
