TD-9583S3B
8MP HD Dome Network Camera
TD-9583S3B(D/AZ/PE/AR3) Motorized zoom lens ：2.8~12mm
Introduction
Specification
Accessories
Downloads
Features
H.265+/H.265/H.264+/H.264/MJPEG coding
Max.resolution: 8MP ( 3840 × 2160 )
ICR auto switch, true day / night vision
3D DNR, true WDR, HLC, BLC, smart IR and ROI coding
Lens distortion correction supported
30~50m IR night view distance; Motorized zoom lens
1CH audio input; 1CH audio output; 1CH built-in MIC
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
Support three streams
IP 67&IK10
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent analytics

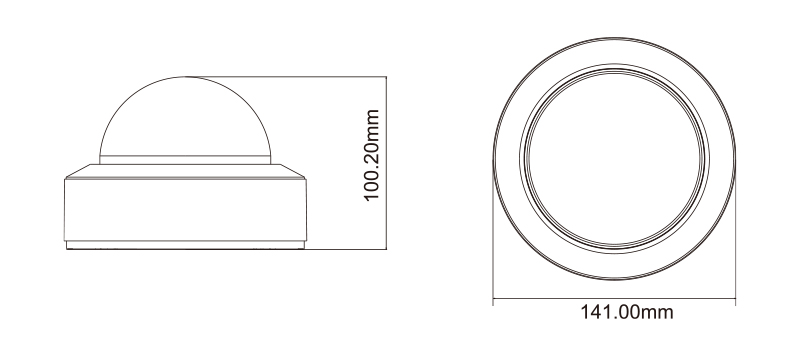

Dimension
| Model | TD-9583S3B | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 "CMOS | |||
| Image Size | 3840×2160 | |||
| Electronic Shutter | 1 / 2 s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | |||
| Min. Illumination | 0.02 lux @ F1.6, AGC ON; 0 lux with IR | |||
| Lens | 2.8~12mm@F1.6, motorized ~ | |||
| Field of View | Horizontal:99°~33°; Vertical :53°~17°; Diagonal:117°~37° | |||
| Lens Mount | Φ14 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 86.65m(284.28ft) | 34.66m(113.71ft) | 17.33m(56.85ft) | 8.66m(28.41ft) |
| 2.8~12mm(T) | 289.06m(552.31ft) | 115.62m(240.12ft) | 57.81m(136.06ft) | 28.91m(84.04ft) |
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP ( 2592 × 1520), 2K(2560 × 1440 ), 3MP(2304 × 1296), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |||
| Main Stream | 60Hz : 8MP(1~20fps)/6MP/5MP/4MP/2K/3MP/1080P/720P(1~30fps) 50Hz : 8MP(1~20fps)/6MP/5MP/4MP/2K/3MP/1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz: 720P(1~12fps)/D1/480 × 240(1~30fps) 50Hz: 720P/D1/480 × 240(1~25fps) | |||
| Third Stream | 60Hz: 720P/D1/CIF/480 × 240 (1~30fps) 50Hz: 720P/D1/CIF/480 × 240 (1~25fps) | |||
| Bit Rate | 64 Kbps ~ 12 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, image mirror, image flip, Sharpness, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | CVBS output (BNC×1) | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | IE browser/ TVT NVR / NVMS / mobile APP | |||
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection; sensor alarm, SD card error; SD card full, IP address conflict, cable disconnection | |||
| Intelligent Analytics | Scene change, video blur detection, abnormal color detection , line crossing detection, intrusion detection | |||
| General function | Watermark, video mask, heartbeat,corridor pattern | |||
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs | |||
| IR Distance | 30~50m | |||
| Protection Grade | IP 67&IK10 | |||
| PoE | Yes (IEEE802.3af) | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 10.5W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 141 × 100.2 | |||
| Weight ( net ) | Approx. 0.91KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
