TD-9583E3B-A
8MP HD AI Dome Network Camera
TD-9583E3B-A(D/AZ/PE/AR3) Motorized zoom lens ：2.8~12mm
Introduction
Specification
Accessories
Downloads
Features
H.265+/H.265/H.264+/H.264/MJPEG coding
Max.resolution: 8MP (3840 × 2160)
ICR auto switch, t rue day / night vision
3D DNR, HWDR, HLC, BLC and ROI coding
Support electronic image stabilization
30~50m IR night view distance; Motorized zoom lens
1CH audio input; 1CH audio output; 1CH built-in MIC
1CH alarm input; 1CH alarm output; 1CH CVBS video output
Built-in micro SD card slot, up to 512GB
DC12V/PoE power supply
Support three streams
IP 67&IK10
Support mobile surveillance by smart phones with iOS and Android OS
Support SMD
Support NAT function
Multiple smart events can be enabled at the same time
Dual-system backup

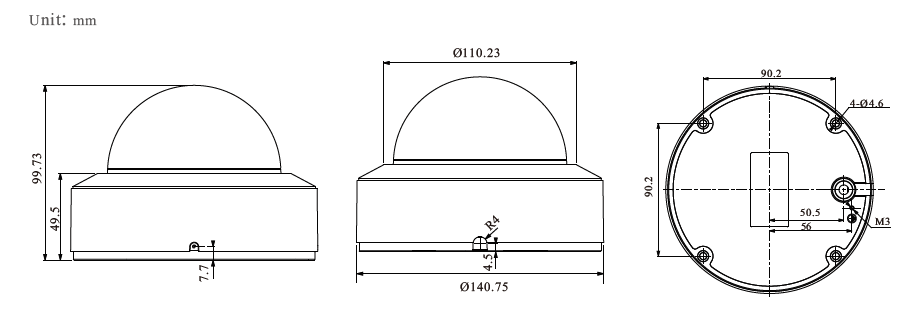

Dimension
| Model | TD-9583E3B-A | |||
| Camera | ||||
| Image Sensor | 1 / 2.8" CMOS | |||
| Image Size | 3840×2160 | |||
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | |||
| Min. Illumination | 0.015 lux@F1.4, AGC ON; 0 lux with IR | |||
| Lens | 2.8~12mm@F1.4, motorized | |||
| Field of View | Horizontal: 102°~32°; Vertical:54°~17°; Diagonal: 120°~37° | |||
| Lens Mount | Φ14 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| EIS | Yes | |||
| Angle Adjustment | Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 8MP(3840×2160), 6MP(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P(1920×1080), 720P(1280×720), VGA(640×480), 640×360, 480×240, D1, CIF | |||
| Main Stream | 8MP/6MP/4MP/2K/1080P(60Hz : 1~30fps; 50Hz : 1~25fps) | |||
| Sub Stream | 1080P/720P/D1/VGA/640×360/480×240/CIF(60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) | |||
| Third Stream | 720P(1~15fps)/D1/640×360/VGA/CIF/480×240(60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) | |||
| Bit Rate | 64 Kbps ~ 12Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 (10/100 Base-T) | |||
| Video Output | CVBS output (BNC×1) | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot; up to 512GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Intelligent Video Detection(IVD) | Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 85m(278ft) | 34m(111ft) | 17m(56ft) | 8m(26ft) |
| 2.8~12mm(T) | 289m(948ft) | 116m(380ft) | 58m(190ft) | 29m(95ft) |
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, NAT, QoS | |||
| Interface Protocol | ONVIF | |||
| API & SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication,basic and digest authentication for HTTP/RTSP/API | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 30~50m | |||
| Ingress Protection | IP 67&IK10 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | PoE: max. 10.3W; DC12V: max. 8.4W | |||
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions (mm) | Ø 141 × 100 | |||
| Weight (net) | Approx. 0.89KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
